XTEARY-00-0000-000000Q04

Active

Cree LED

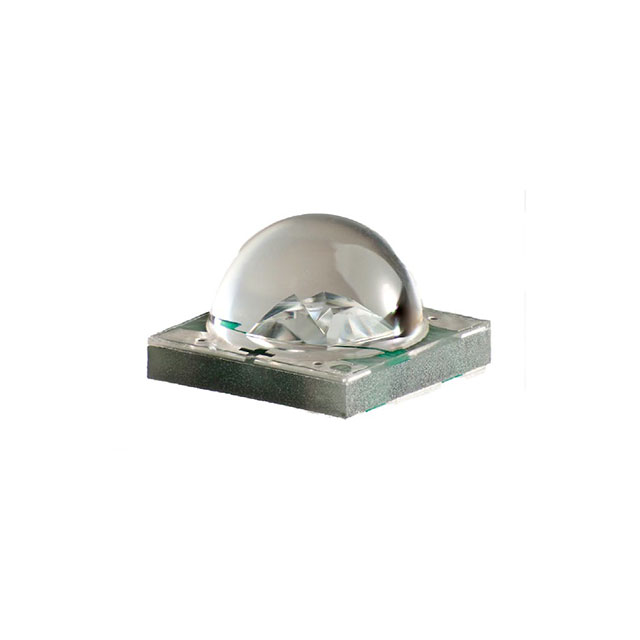

XLAMP XT-E LIGHT EMITTING DIODE ROYAL BLUE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XTEARY-00-0000-000000Q04

Active

Cree LED

XLAMP XT-E LIGHT EMITTING DIODE ROYAL BLUE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.30
	Digi-Reel®	1	$ 3.30
	Tape & Reel (TR)	1000	$ 2.20

Description

General part information

XTEARY Series

LED Lighting Color XLamp® XT-E Blue 453nm (450nm ~ 455nm) 1414 (3535 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XTEARY-00-0000-000000Q04	XTEARY Series

Color	Blue	Blue
Current - Max [Max]	1.5 A	1.5 A
Current - Test	350 mA	350 mA
Height - Seated (Max)	-	2.41 mm
Height - Seated (Max) [Max] [z]	0.1 in	0.095 - 0.1 in
Height - Seated (Max) [Max] [z]	2.54 mm	2.54 mm
Luminous Flux @ Current/Temperature	613 mW	488 - 688 mW
Luminous Flux @ Current/Temperature	-	475 - 675 mW
Luminous Flux @ Current/Temperature	-	500 - 700 mW
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.45 mm	3.45 mm
Size / Dimension [x]	0.136 in	0.136 in
Size / Dimension [y]	0.136 in	0.136 in
Size / Dimension [y]	3.45 mm	3.45 mm
Supplier Device Package	SMD	SMD, 1414
Temperature - Test	85 °C	85 °C
Viewing Angle	140 °	130 - 140 °
Voltage - Forward (Vf) (Typ)	2.85 V	2.8 - 2.85 V
Wavelength	-	453 - 463 nm
Wavelength	-	458 - 465 nm
Wavelength	-	453 - 460 nm

XTEARY Series

LED XLAMP XTE BLUE 458NM SMD

...

Part	Mounting Type	Voltage - Forward (Vf) (Typ)	Current - Test	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Current - Max [Max]	Luminous Flux @ Current/Temperature	Wavelength	Package / Case	Package / Case	Temperature - Test	Viewing Angle	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Wavelength [Max]	Wavelength [Min]	Height - Seated (Max) [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
Cree LED XTEARY-00-0000-000000L01	Surface Mount	2.85 V	350 mA	Blue	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	1.5 A	513 mW	458 nm	3535 Metric	1414	85 °C	140 °	0.1 in	2.54 mm
Cree LED XTEARY-02-0000-000000P05	Surface Mount	2.85 V	350 mA	Blue	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	1.5 A			3535 Metric	1414	85 °C	140 °	0.1 in	2.54 mm	460 nm	455 nm
Cree LED XTEARY-02-0000-000000R06	Surface Mount	2.8 V	350 mA	Blue	3.45 mm	0.136 in	0.136 in	3.45 mm	1414	1.5 A	638 mW	463 nm	3535 Metric	1414	85 °C	130 °	0.095 in				2.41 mm
Cree LED XTEARY-02-0000-000000S04	Surface Mount	2.8 V	350 mA	Blue	3.45 mm	0.136 in	0.136 in	3.45 mm	1414	1.5 A	663 mW	453 nm	3535 Metric	1414	85 °C	130 °	0.095 in				2.41 mm
Cree LED XTEARY-00-0000-000000T05	Surface Mount	2.8 V	350 mA	Blue	3.45 mm	0.136 in	0.136 in	3.45 mm	1414	1.5 A	688 mW		3535 Metric	1414	85 °C	130 °	0.095 in		460 nm	455 nm	2.41 mm	675 mW	700 mW
Cree LED XTEARY-00-0000-000000T07	Surface Mount	2.8 V	350 mA	Blue	3.45 mm	0.136 in	0.136 in	3.45 mm	1414	1.5 A	688 mW		3535 Metric	1414	85 °C	130 °	0.095 in		458 nm	453 nm	2.41 mm	675 mW	700 mW
Cree LED XTEARY-02-0000-000000Q07	Surface Mount	2.85 V	350 mA	Blue	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	1.5 A	613 mW	455 nm	3535 Metric	1414	85 °C	140 °	0.1 in	2.54 mm
Cree LED XTEARY-02-0000-000000K06	Surface Mount	2.85 V	350 mA	Blue	3.45 mm	0.136 in	0.136 in	3.45 mm	SMD	1.5 A	488 mW	463 nm	3535 Metric	1414	85 °C	140 °	0.1 in	2.54 mm	465 nm	460 nm		475 mW	500 mW
Cree LED XTEARY-02-0000-000000R03	Surface Mount	2.8 V	350 mA	Blue	3.45 mm	0.136 in	0.136 in	3.45 mm	1414	1.5 A	638 mW	460 nm	3535 Metric	1414	85 °C	130 °	0.095 in				2.41 mm
Cree LED XTEARY-00-0000-000000S01	Surface Mount	2.8 V	350 mA	Blue	3.45 mm	0.136 in	0.136 in	3.45 mm	1414	1.5 A	663 mW	458 nm	3535 Metric	1414	85 °C	130 °	0.095 in				2.41 mm
