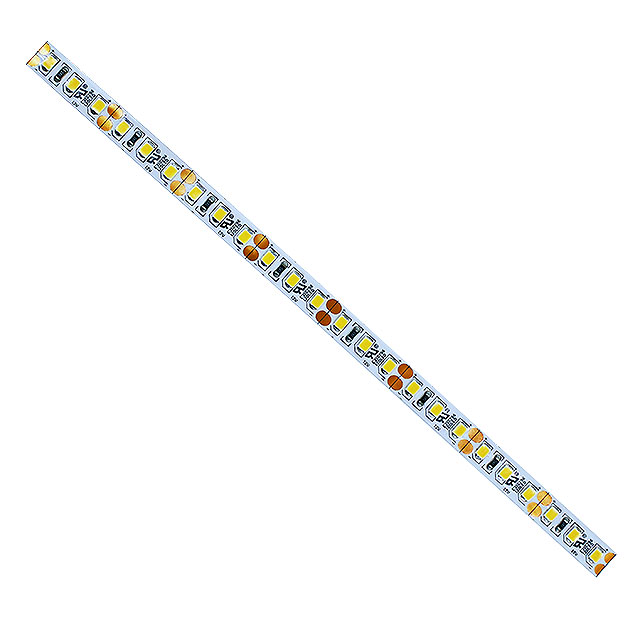

12V-MB-CW-12M
ActiveInspired LED, LLC
LED ENG CW 3LEDS 6000K 12M REEL
Deep-Dive with AI
Search across all available documentation for this part.
12V-MB-CW-12M
ActiveInspired LED, LLC
LED ENG CW 3LEDS 6000K 12M REEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 12V-MB-CW-12M | 12V-MB Series |
|---|---|---|
| CCT (K) | 6000 K | 4200 - 6000 K |
| Color | Cool, White | Neutral, White, Warm, Cool |
| Configuration | Linear Light Strip, Flexible | Linear Light Strip, Flexible |
| CRI (Color Rendering Index) | 92 | 92 - 93 |
| Height [z] | 1.5 mm | 1.5 mm |
| Lens Type | Flat | Flat |
| Size / Dimension | 25.40mm L per Segment | 25.40mm L per Segment |
| Size / Dimension [x] | 12000 mm | 12000 mm |
| Size / Dimension [y] | 8 mm | 8 mm |
| Type | LED Engine | LED Engine |
| Viewing Angle | 120 ° | 120 ° |
| Voltage - Forward (Vf) (Typ) | 12 V | 12 V |
12V-MB Series
LED ENG NW 3LEDS 4200K 12M REEL
| Part | Voltage - Forward (Vf) (Typ) | Color | Size / Dimension [x] | Size / Dimension | Size / Dimension [y] | Lens Type | CRI (Color Rendering Index) | CCT (K) | Height [z] | Type | Configuration | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Inspired LED, LLC 12V-MB-PW-12M | 12 V | Neutral, White | 12000 mm | 25.40mm L per Segment | 8 mm | Flat | 93 | 4200 K | 1.5 mm | LED Engine | Flexible, Linear Light Strip | 120 ° |
Inspired LED, LLC 12V-MB-WW-12M | 12 V | Warm, White | 12000 mm | 25.40mm L per Segment | 8 mm | Flat | 92 | 1.5 mm | LED Engine | Flexible, Linear Light Strip | 120 ° | |
Inspired LED, LLC 12V-MB-CW-12M | 12 V | Cool, White | 12000 mm | 25.40mm L per Segment | 8 mm | Flat | 92 | 6000 K | 1.5 mm | LED Engine | Flexible, Linear Light Strip | 120 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| Tape & Reel (TR) | 480 | $ 0.35 | ||
Description
General part information
12V-MB Series
LED Lighting COBs Engines Modules LED Engine - White, Cool Linear Light Strip, Flexible
