A7OOB-1506M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AFN15B/AE15M/AFN15B
Deep-Dive with AI
Search across all available documentation for this part.
A7OOB-1506M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AFN15B/AE15M/AFN15B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7OOB-1506M | A7OOB Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 6 ft | 6 - 10 ft |
| Length | 1.83 m | 1.83 - 3.05 m |
| Number of Positions | 15 | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB15 | DB25, DB15, DB37, DB9 |
| Usage | Patch | Patch |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.38 | |
| 10 | $ 38.44 | |||
| 25 | $ 35.69 | |||
| 50 | $ 33.74 | |||
| 100 | $ 31.91 | |||
| 250 | $ 29.82 | |||
A7OOB Series
CABLE D-SUB-AFN25B/AE25G/AFN25B
| Part | Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Usage | Shielding | 2nd Connector | 1st Connector | Length | Length | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7OOB-2506G | DB25 | 0.76 Ám | 30 Áin | Gold | Patch | Unshielded | Receptacle, Female Sockets | Female Sockets, Receptacle | 6 ft | 1.83 m | ||
TE Connectivity AMP Connectors A7OOB-2510G | DB25 | 0.76 Ám | 30 Áin | Gold | Patch | Unshielded | Receptacle, Female Sockets | Female Sockets, Receptacle | 10 ft | 3.05 m | ||
TE Connectivity AMP Connectors A7OOB-1506M | DB15 | 0.76 Ám | 30 Áin | Gold | Patch | Unshielded | Receptacle, Female Sockets | Female Sockets, Receptacle | 6 ft | 1.83 m | Multiple, Ribbon | 15 |
TE Connectivity AMP Connectors A7OOB-1506G | DB15 | 0.76 Ám | 30 Áin | Gold | Patch | Unshielded | Receptacle, Female Sockets | Female Sockets, Receptacle | 6 ft | 1.83 m | 15 | |
TE Connectivity AMP Connectors A7OOB-3710G | DB37 | 0.76 Ám | 30 Áin | Gold | Patch | Unshielded | Receptacle, Female Sockets | Female Sockets, Receptacle | 10 ft | 3.05 m | 37 | |
TE Connectivity AMP Connectors A7OOB-2510M | DB25 | 0.76 Ám | 30 Áin | Gold | Patch | Unshielded | Receptacle, Female Sockets | Female Sockets, Receptacle | 10 ft | 3.05 m | Multiple, Ribbon | |
TE Connectivity AMP Connectors A7OOB-3706M | DB37 | 0.76 Ám | 30 Áin | Gold | Patch | Unshielded | Receptacle, Female Sockets | Female Sockets, Receptacle | 6 ft | 1.83 m | Multiple, Ribbon | 37 |
TE Connectivity AMP Connectors A7OOB-2506M | DB25 | 0.76 Ám | 30 Áin | Gold | Patch | Unshielded | Receptacle, Female Sockets | Female Sockets, Receptacle | 6 ft | 1.83 m | Multiple, Ribbon | |
TE Connectivity AMP Connectors A7OOB-0906G | DB9 | 0.76 Ám | 30 Áin | Gold | Patch | Unshielded | Receptacle, Female Sockets | Female Sockets, Receptacle | 6 ft | 1.83 m | 9 | |
TE Connectivity AMP Connectors A7OOB-0910M | DB9 | 0.76 Ám | 30 Áin | Gold | Patch | Unshielded | Receptacle, Female Sockets | Female Sockets, Receptacle | 10 ft | 3.05 m | Multiple, Ribbon | 9 |
Description
General part information
A7OOB Series

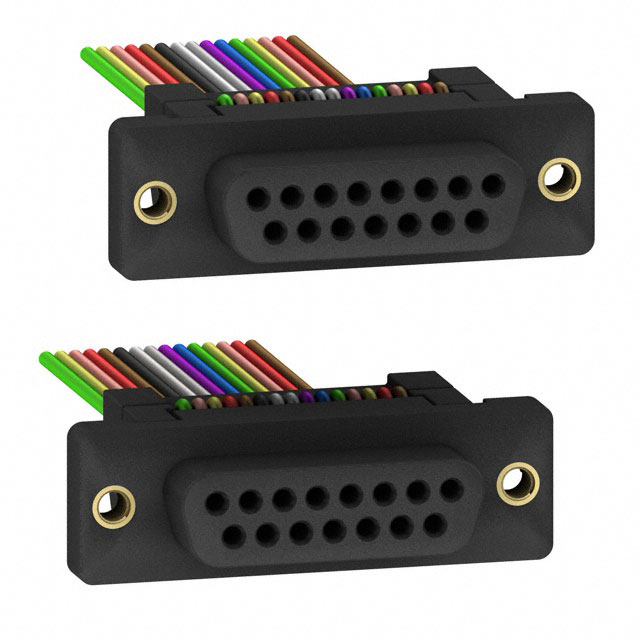

D-Sub Cable Assembly DB15 Multiple, Ribbon 6.00' (1.83m) Receptacle, Female Sockets to Receptacle, Female Sockets Unshielded
