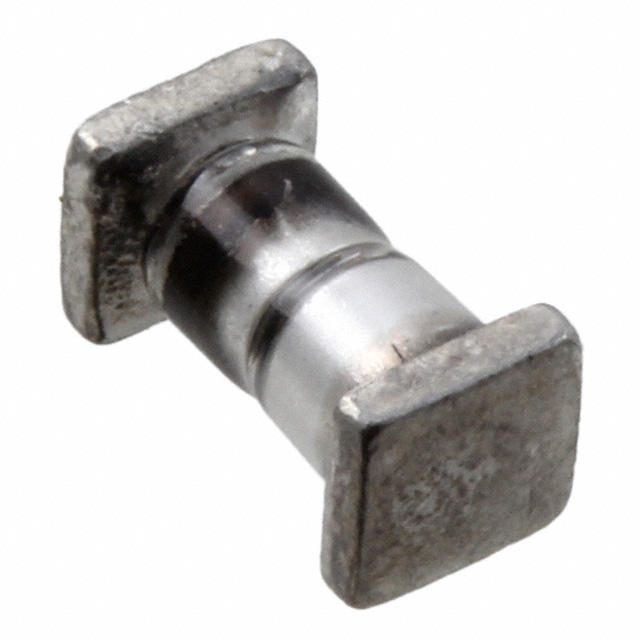

JANTX1N4465US
Active10V 1.5W 5 OHMS VOLTAGE REGULATOR SQ SMT A-BODY SQ. MELF ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
JANTX1N4465US
Active10V 1.5W 5 OHMS VOLTAGE REGULATOR SQ SMT A-BODY SQ. MELF ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | JANTX1N4465US | JANTX1N4465US-Zener-Diode Series |
|---|---|---|
| Current - Reverse Leakage @ Vr | - | 300 nA |
| Grade | - | Military |
| Impedance (Max) (Zzt) | - | 5 Ohms |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature | - | -65 ░C |
| Operating Temperature | - | 347 °F |
| Package / Case | - | DO-213AB, MELF (Glass) |
| Power - Max | - | 1.5 W |
| Qualification | - | MIL-PRF-19500/406 |
| Supplier Device Package | - | MELF, D5A |
| Tolerance | - | 5 % |
| Voltage - Zener (Nom) (Vz) | - | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.46 | |
| 100 | $ 13.43 | |||
| Microchip Direct | N/A | 1 | $ 14.46 | |
| Newark | Each | 100 | $ 13.43 | |
| 500 | $ 12.91 | |||
JANTX1N4465US-Zener-Diode Series
Zener Diode Single 2-Pin 10V, 5%, 1500mW A-MELF Bag
| Part | Impedance (Max) (Zzt) [Max] | Tolerance | Grade | Package / Case | Supplier Device Package | Mounting Type | Power - Max [Max] | Qualification | Voltage - Zener (Nom) (Vz) | Operating Temperature [Min] | Operating Temperature [Max] | Current - Reverse Leakage @ Vr |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology JANTX1N4465US | 5 Ohms | 5 % | Military | DO-213AB, MELF (Glass) | MELF, D5A | Surface Mount | 1.5 W | MIL-PRF-19500/406 | 10 V | -65 ░C | 347 °F | 300 nA |
Microchip Technology JANTX1N4465US | ||||||||||||
Microchip Technology JANTX1N4465US/TR |
Description
General part information
JANTX1N4465US-Zener-Diode Series
This surface mount, Zener voltage regulator series is military qualified to MIL-PRF-19500/406 and is ideal for high-reliability applications where a failure cannot be tolerated. These industry recognized 1.5 watt Zener voltage regulators are hermetically sealed with void-less glass construction using an internal metallurgical bond. It includes Zener selections from 3.3 to 200 volts in standard 5% tolerance. 1% and 2% tolerance versions are also available. Microchip also offers numerous other Zener products to meet higher and lower power ratings in both thru-hole and surface mount packages.
Documents
Technical documentation and resources
