132528-1

Active

TE Connectivity AMP Connectors

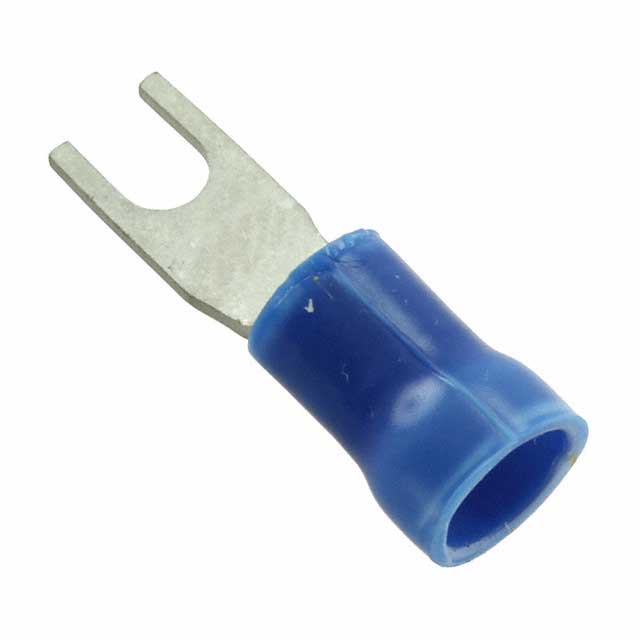

CONN SPADE TERM 14-16AWG #4 BLU

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SPADE TERM 14-16AWG #4 BLU

Technical Specifications

Parameters and characteristics for this part

CONN SPADE TERM 14-16AWG #4 BLU

Part	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Color	Termination	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Mounting Type	Material - Insulation	Stud/Tab Size	Contact Material	Features	Width - Outer Edges [y]	Width - Outer Edges [y]	Terminal Type	Insulation
TE Connectivity AMP Connectors 132528-1	19.89 mm	0.783 in	4.9 mm	3 mm	0.193 in	0.118 in	Blue	Crimp	3.02 mm	0.119 in	Free Hanging (In-Line)	Poly-Vinyl Chloride (PVC)	4 Stud	Copper	Serrated Termination	5 mm	0.197 in	Standard	Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 4 Stud Spade Terminal Connector Crimp 14-16 AWG
