PI3USB14-AZHEX
ActiveDiodes Inc
3.3V, 2-CHANNEL, 4:1 MUX USB 2.0 SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
PI3USB14-AZHEX
ActiveDiodes Inc
3.3V, 2-CHANNEL, 4:1 MUX USB 2.0 SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI3USB14-AZHEX |
|---|---|
| -3db Bandwidth | 815 MHz |
| Applications | USB |
| Features | USB 2.0 |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Channels [custom] | 2 |
| On-State Resistance (Max) [Max] | 8 Ohm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

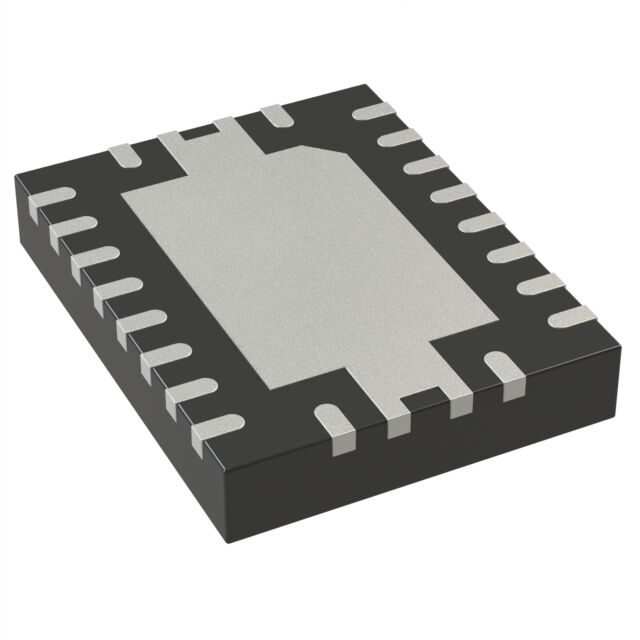

| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-TQFN (4.5x3.5) |
| Voltage - Supply, Single (V+) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.92 | |
| 10 | $ 1.41 | |||
| 25 | $ 1.28 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.08 | |||
| 500 | $ 1.04 | |||
| 1000 | $ 1.01 | |||
| Digi-Reel® | 1 | $ 1.92 | ||
| 10 | $ 1.41 | |||
| 25 | $ 1.28 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.08 | |||
| 500 | $ 1.04 | |||
| 1000 | $ 1.01 | |||
| Tape & Reel (TR) | 3500 | $ 0.88 | ||
Description
General part information
PI3USB14-A Series
3.3V, 2-Channel, 4:1 Mux USB 2.0 Switch
