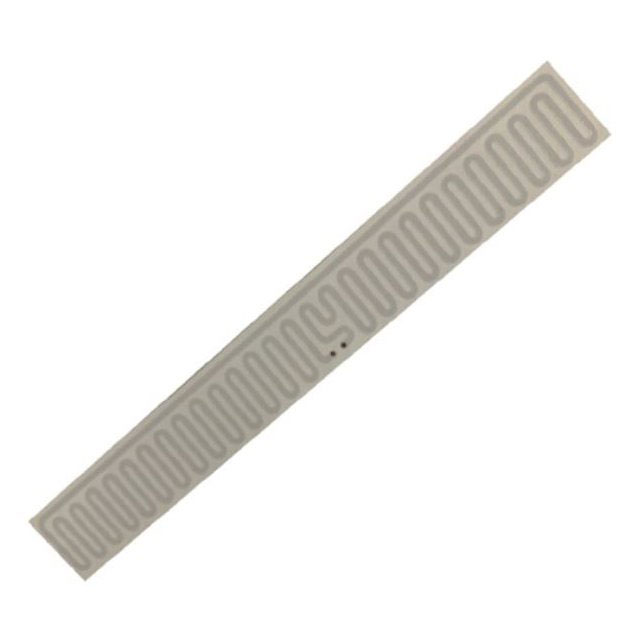

Specification	53-254570

Approval Agency	UL
Attachment Method	Pressure Sensitive Adhesive (PSA)
Color	Off-White
Features	User Selectable Voltage, Leads Potted
Length	12 in
Length - Lead Wire	12 in
Material	Polyester
Material - Insulation	PTFE, Polytetrafluoroethylene
Power (Watts)	720 W
Resistance	200 mOhms
Shape	Rectangular
Temperature Rating	250 °F
Termination	Wire Leads
Type	Flexible Heater, Foil
Watt Density	5 W/in²
Width	12 in
Wire Gauge	18 AWG
