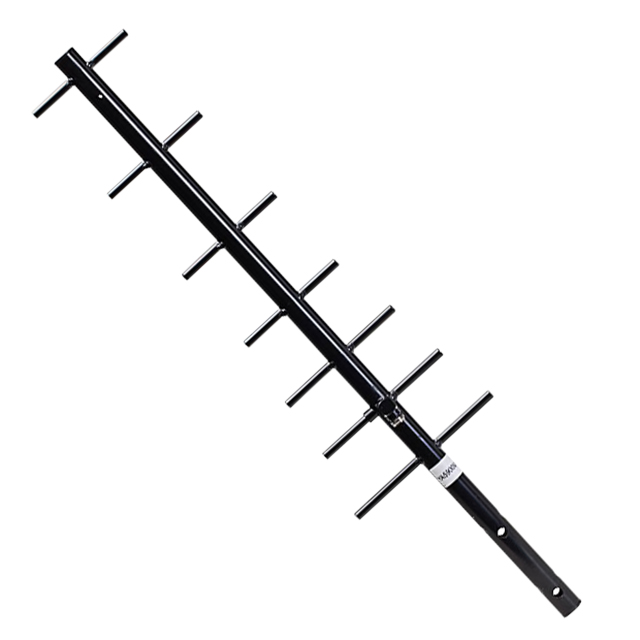

YA5825W
ActivePulse Electronics
ANT YAGI 824-896MHZ 11DBI N-FEM
YA5825W
ActivePulse Electronics
ANT YAGI 824-896MHZ 11DBI N-FEM
Description
General part information
YA5825W
RF ANTENNA General Purpose Directional Antenna N Type Female Pole Clamp
Technical Specifications
Parameters and characteristics for this part
| Specification | YA5825W |
|---|---|
| Antenna Type | Directional Antenna |
| Applications | General Purpose |
| Frequency (Center/Band) | 860 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 896 MHz |
| Frequency Range (Min) | 824 MHz |
| Gain | 11.2 dBi |
| Height (Max) | 31.26 in |
| Mounting Type | Pole Clamp |
| Number of Bands | 1 |
| Power - Max | 300 W |
| Termination | N Type Female |
| VSWR | 2 |
