PE3301-36
ActivePasternack

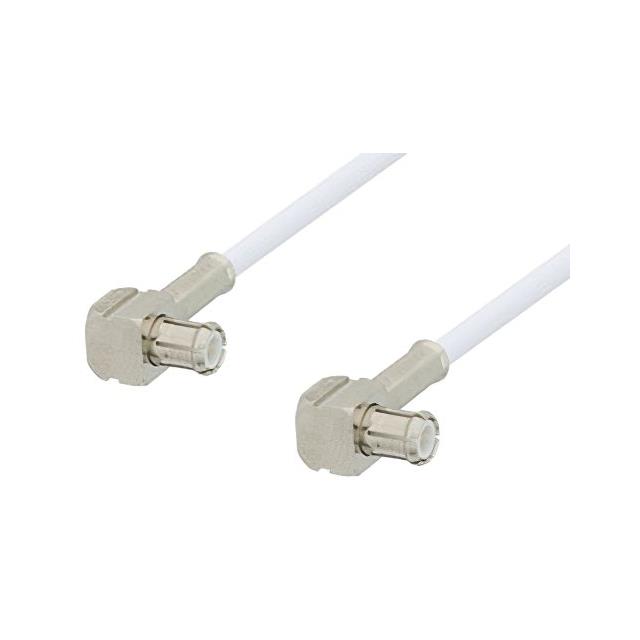

MCX PLUG RIGHT ANGLE TO MCX PLUG
PE3301-36
ActivePasternack
MCX PLUG RIGHT ANGLE TO MCX PLUG
Description
General part information
PE3301-36
Cable Assembly Coaxial MCX to MCX RG-196 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3301-36 |
|---|---|
| 1st Connector | MCX Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MCX Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 196 |
| Color | White |
| Connector Impedance | 50 Ohms |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | MCX |
