Description
General part information
GFTO070DI800480L

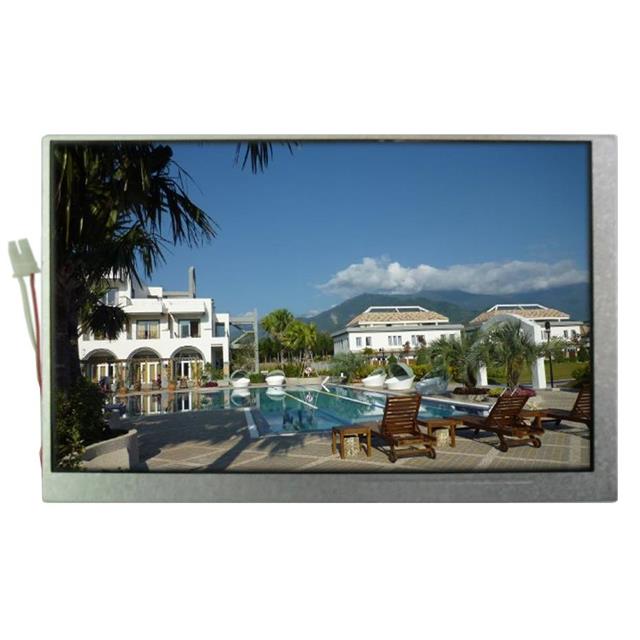

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color TTL 7" (177.80mm) 800 x 480
Technical Specifications
Parameters and characteristics for this part
| Specification | GFTO070DI800480L |
|---|---|
| Background Color | White |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | EK79713B, EK73202A |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 800 pixels |
| Dot Pixels (Vertical) | 480 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | TTL |
| Viewing Area Height | 94.35 mm |
| Viewing Area Width | 155.35 mm |
