9741 0601000

Active

Belden Inc.

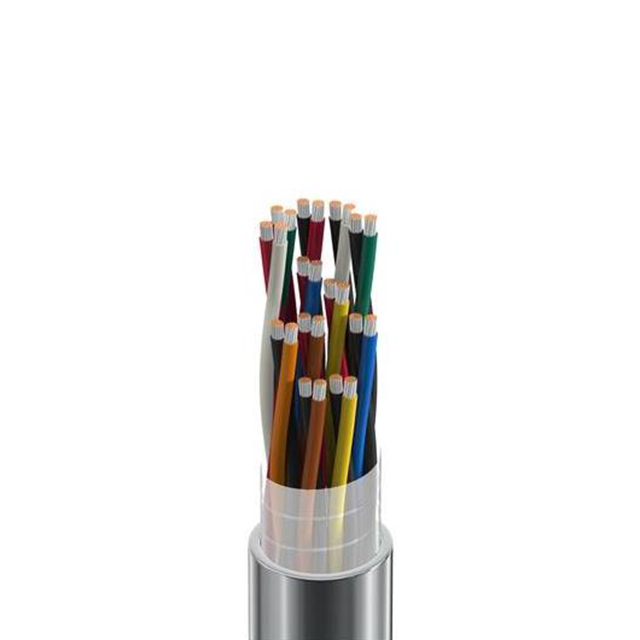

CABLE 24COND 18AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 24COND 18AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9741 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.6 in
Jacket (Insulation) Diameter [diameter]	15.24 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.046 in
Jacket (Insulation) Thickness	1.168 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	24
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Conductor Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Usage	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Number of Conductors	Wire Gauge	Jacket (Insulation) Material	Ratings	Operating Temperature [Min]	Operating Temperature [Max]
Belden Inc. 9741 0601000	0.046 in	1.168 mm	1000 ft	304.8 m	Copper Tinned	Chrome	0.6 in	15.24 mm	Multi-Conductor	Audio Control Instrumentation	300 V	16	30 AWG	Poly-Vinyl Chloride (PVC)	24	18 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2464	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 19.51

General part information

24 (12 Pair Twisted) Conductor Multi-Conductor Cable Chrome 18 AWG 1000.0' (304.8m)
