ATS-PCB1067
ObsoleteAdvanced Thermal Solutions Inc.

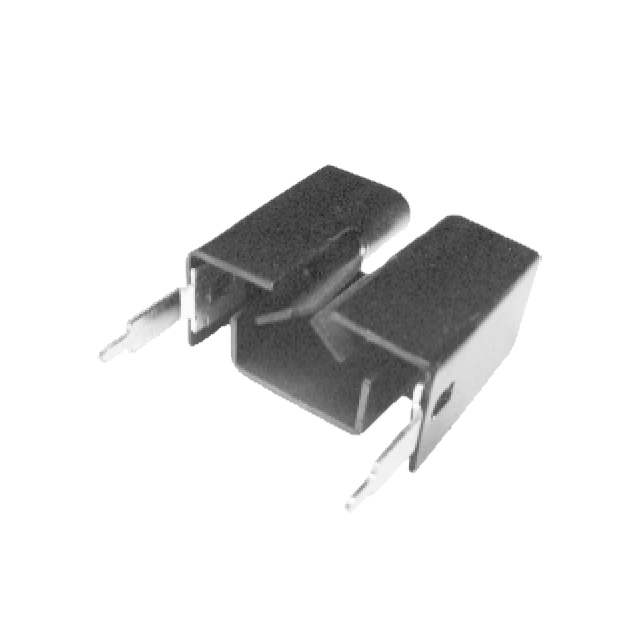

HEATSINK TO-220 W/TAB BLACK
ATS-PCB1067
ObsoleteAdvanced Thermal Solutions Inc.
HEATSINK TO-220 W/TAB BLACK
Description
General part information
ATS-PCB1067
Heat Sink TO-220 Aluminum Board Level, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS-PCB1067 |
|---|---|
| Attachment Method | Clip, PC Pin |
| Fin Height | 0.39 in |
| Length | 0.752 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Shape | Fins, Rectangular |
| Thermal Resistance | 21.2 °C/W, 10.5 °C/W |
| Type | Vertical, Board Level |
| Width | 0.86 in |
