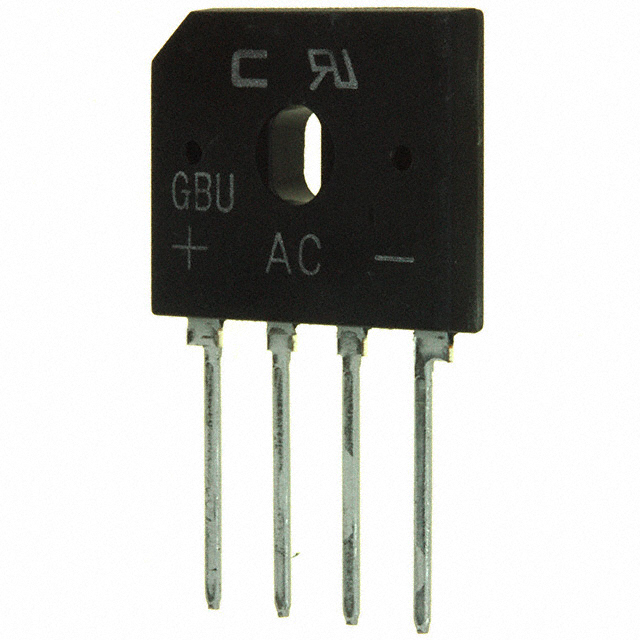

GBU2504-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 400V 25A GBU

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 400V 25A GBU

Technical Specifications

Parameters and characteristics for this part

Specification	GBU2504-G

Current - Average Rectified (Io)	25 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SIP, GBU
Supplier Device Package	GBU
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	400 V

BRIDGE RECT 1PHASE 400V 25A GBU

Part	Voltage - Forward (Vf) (Max) @ If	Technology	Mounting Type	Current - Average Rectified (Io)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Peak Reverse (Max) [Max]	Diode Type	Supplier Device Package	Current - Reverse Leakage @ Vr
Comchip Technology GBU2504-G	1 V	Standard	Through Hole	25 A	4-SIP, GBU	-55 °C	150 °C	400 V	Single Phase	GBU	10 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	200	$ 1.25

General part information

Bridge Rectifier Single Phase Standard 400 V Through Hole GBU
