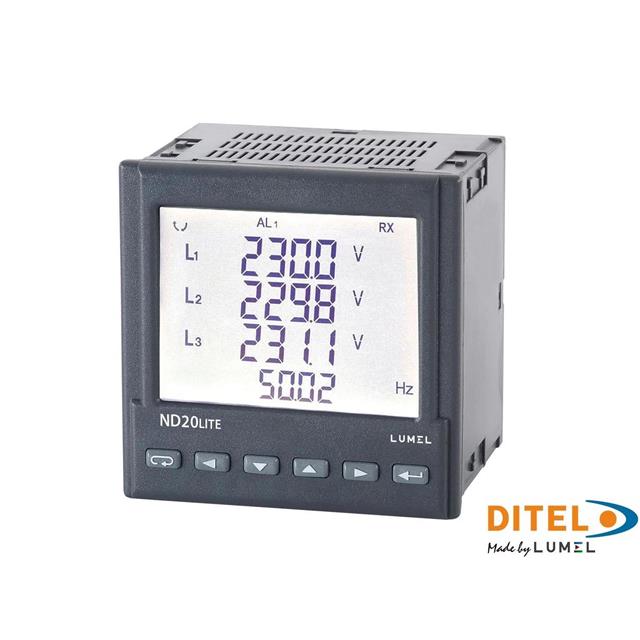

ND20L-22100M1

Active

DITEL

POWER NETWORK METER

Search across all available documentation for this part.

Active

DITEL

POWER NETWORK METER

Technical Specifications

Parameters and characteristics for this part

Specification	ND20L-22100M1

Display Type	LCD - Blue Characters, Backlight
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range	5 A
Measuring Range [Max]	400 VAC
Measuring Range [Min]	230 VAC
Measuring Type	Voltage, Current
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Type	Analog
Panel Cutout Dimensions [x]	92.5 mm
Panel Cutout Dimensions [y]	92.5 mm
Termination Style	Screw Terminal
Type	Ammeter, Volmeter
Voltage - Supply [Max]	253 VAC/DC, 300 VDC
Voltage - Supply [Min]	85 VAC, 90 VDC

POWER NETWORK METER

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Measuring Range [Max]	Measuring Range [Min]	Measuring Range	Termination Style	Display Type	Type	Ingress Protection	Measuring Type
DITEL ND20L-22100M1	92.5 mm	92.5 mm	253 VAC/DC, 300 VDC	85 VAC, 90 VDC	Analog	55 °C	-25 °C	400 VAC	230 VAC	5 A	Screw Terminal	LCD - Blue Characters, Backlight	Ammeter, Volmeter	IP65 - Dust Tight, Water Resistant	Current, Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 233.00

General part information

Ammeter, Voltmeter LCD - Blue Characters, Backlight Display Panel Mount
