Description
General part information

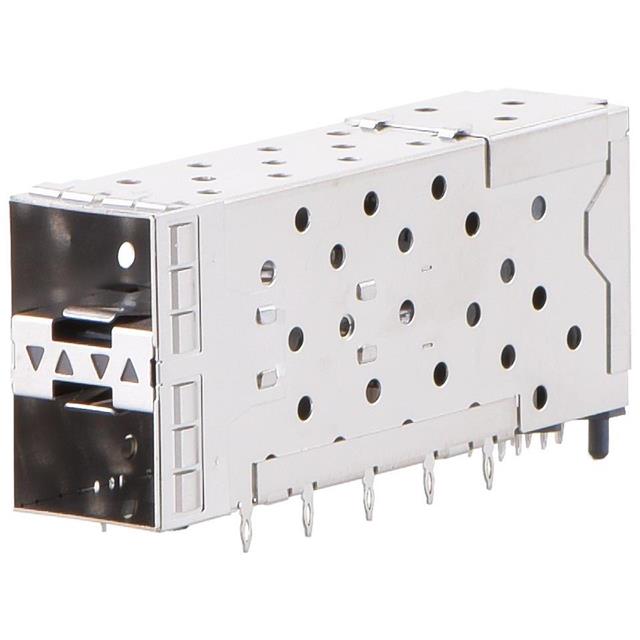

KSFP-K-PPFA-2114
40 (20 x 2) Position SFP+ Receptacle with Cage, Ganged (2x1) Connector Press-Fit Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | KSFP-K-PPFA-2114 |
|---|---|
| Connector Pin Configuration (Columns) | 1 pins |
| Connector Pin Configuration (Rows) | 2 pins |
| Connector Style | Receptacle with Cage, Ganged |
| Connector Type | SFP+ |
| Contact Finish | Gold |
| Features | EMI Shielded, Light Pipe, Board Guide |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions (Columns) | 20 |
| Number of Positions (Rows) | 2 |
| Number of Positions (Total) | 40 |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
