1182 X 1"

Active

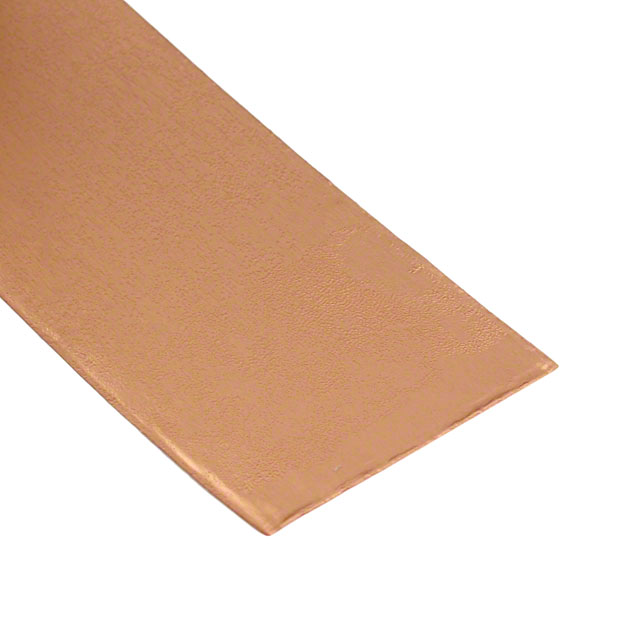

RF EMI SHIELDING SHEET 36" X 1"

Search across all available documentation for this part.

Active

RF EMI SHIELDING SHEET 36" X 1"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1182 X 1"	1182 Series

Adhesive	Acrylic, Conductive	Conductive Acrylic, Acrylic, Conductive
Backing, Carrier	-	Copper Foil
Color	-	Natural
Length	16.5 m, 91.44 cm	16.5 - 91.44 m
Length	54 ft	54 ft
Length	-	18 yd
Length [x]	36 "	36 "
Material	Copper Foil	Copper Foil
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Tape Type	-	Copper Foil
Thickness - Backing, Carrier	-	3.5 mils
Thickness - Backing, Carrier	-	0.089 mm
Thickness - Backing, Carrier	-	0.0035 in
Thickness - Overall	0.09 mm	0.09 mm
Thickness - Overall	0.004 in	0.004 in
Type	Shielding Tape, Shielding Sheet	Shielding Tape, Shielding Sheet
Usage	-	EMI Shielding
Width	25.4 mm	25 - 25.4 mm
Width	-	0.98 "
Width	-	12 mm
Width [x]	1 in	0.47 - 1 in

TAPE COPPER FOIL NATU 0.98"X18YD

Part	Usage	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Backing, Carrier	Adhesive	Shelf Life Start	Color	Length	Length	Length	Shelf Life	Tape Type	Width	Width	Width [x]	Width [x]	Thickness - Overall	Thickness - Overall	Material	Operating Temperature [Min]	Operating Temperature [Max]	Type	Length [x]
3M 1182 25MMX16,5MMC9	EMI Shielding	3.5 mils	0.089 mm	0.0035 in	Copper Foil	Conductive Acrylic	Date of Manufacture	Natural	54 ft	16.5 m	18 yd	60 Months	Copper Foil	0.98 "	25 mm
3M 1182 12MMX165MMC19	EMI Shielding	3.5 mils	0.089 mm	0.0035 in	Copper Foil	Conductive Acrylic	Date of Manufacture	Natural	54 ft	16.5 m	18 yd	60 Months	Copper Foil			0.47 in	12 mm
3M 1182-1/2"X18YD						Acrylic, Conductive			54 ft	16.5 m								0.09 mm	0.004 in	Copper Foil	-40 °C	130 °C	Shielding Tape
3M 1182 X 1"						Acrylic, Conductive	Date of Manufacture		54 ft	16.5 m, 91.44 cm		60 Months			25.4 mm	1 in		0.09 mm	0.004 in	Copper Foil	-40 °C	130 °C	Shielding Sheet, Shielding Tape	36 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Sheet 1182 Copper Foil Acrylic, Conductive 1.000" (25.40mm) X 36.000" (914.40mm) X 0.004" (0.09mm)
