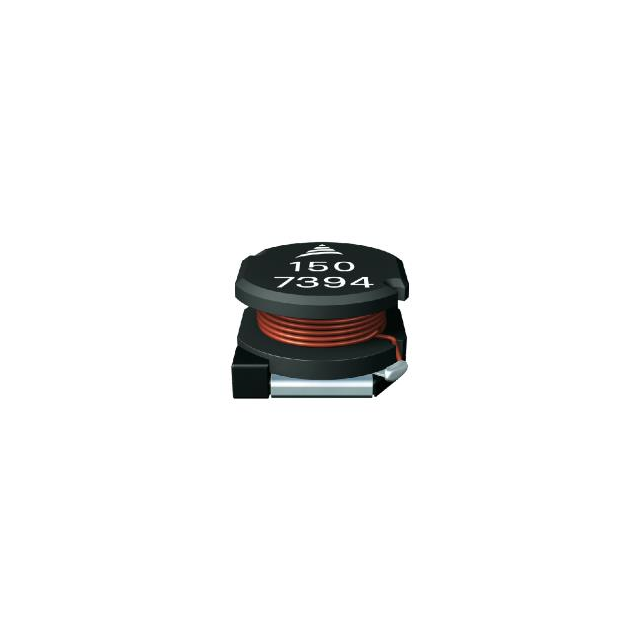

B82475A1103M000
ActiveEPCOS - TDK Electronics
FIXED IND 10UH 2.6A 60 MOHM SMD
B82475A1103M000
ActiveEPCOS - TDK Electronics
FIXED IND 10UH 2.6A 60 MOHM SMD
Description
General part information
B82475A1103M000
10 µH Unshielded Drum Core, Wirewound Inductor 2.6 A 60mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82475A1103M000 |
|---|---|
| Current - Saturation (Isat) | 2.75 A |
| Current Rating | 2.6 A |
| DC Resistance (DCR) (Max) | 60 mOhm |
| Height - Seated (Max) | 0.228 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.409 in |
| Size / Dimension Width | 0.37 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
