General part information

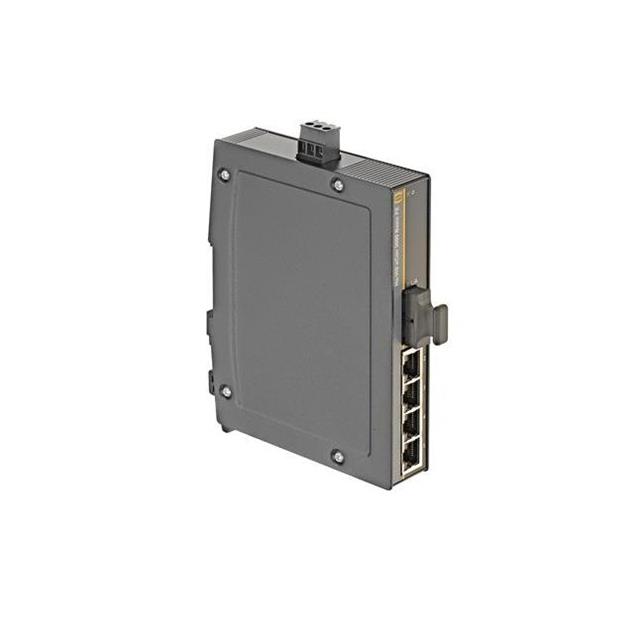

24030041100
Network Switch - Unmanaged 5 Ports IP30
Technical Specifications
Parameters and characteristics for this part
| Specification | 24030041100 |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45, SC |
| Copper Ports | 4 |
| Copper Type | 10/100 |
| Fiber Mode | Multimode |
| Fiber Ports | 1 |
| Fiber Type | 100BASE-FX |
| Ingress Protection | IP30 |
| Mounting Type | DIN Rail |
| Number of Ports | 5 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Switch - Unmanaged |
| Voltage - Input (DC) Maximum | 60 VDC |
| Voltage - Input (DC) Minimum | 9 VDC |
