1241.7021.1180000

Active

SCHURTER Inc.

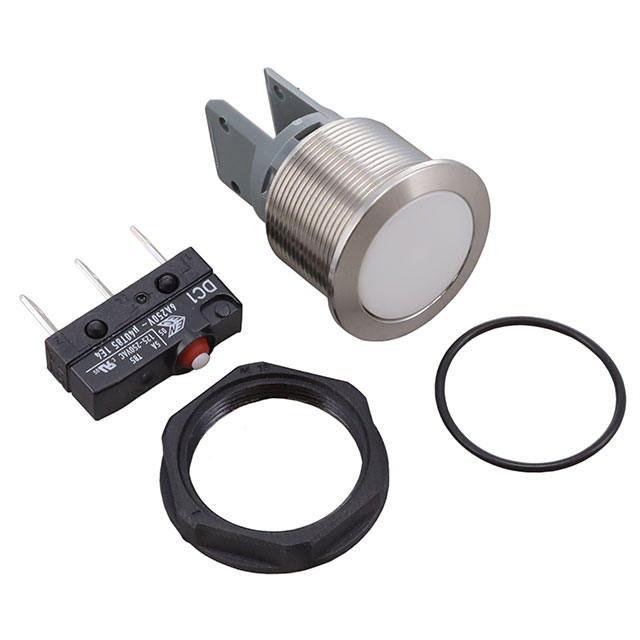

SWITCH PUSHBUTTON SPDT 5A 250V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1241.7021.1180000	1241.7021 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPDT	SPDT
Color - Actuator/Cap	Clear	Clear
Current Rating (Amps)	5 A	5 A
Electrical Life	50000 Cycles	50000 - 200000 Cycles
Features	Ceramic Actuator	Ceramic Actuator
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof, IP40
Mechanical Life	1500000 Cycles	1500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	19.1 mm	19.1 mm
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal	Anti-Vandal
Voltage Rating - AC	250 V	125 - 250 V

SWITCH PUSHBUTTON SPDT 5A 250V

Part	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Actuator Type	Voltage Rating - AC	Circuit	Features	Actuator Marking	Electrical Life	Termination Style	Switch Function	Current Rating (Amps)	Mechanical Life	Type	Panel Cutout Dimensions [diameter]	Ingress Protection
SCHURTER Inc. 1241.7021.1180000	Clear	-25 °C	85 °C	Panel Mount, Front	Button, Flush, Round	250 V	SPDT	Ceramic Actuator	No Marking	50000 Cycles	Quick Connect - 0.110" (2.8mm)	On-Mom	5 A	1500000 Cycles	Anti-Vandal	19.1 mm	IP67 - Dust Tight, Waterproof
SCHURTER Inc. 1241.7021.1120000	Clear	-25 °C	85 °C	Panel Mount, Front	Button, Flush, Round	125 V	SPDT	Ceramic Actuator	No Marking	200000 Cycles	Quick Connect - 0.110" (2.8mm)	On-Mom	5 A	1500000 Cycles	Anti-Vandal	19.1 mm	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.21

General part information

Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front

Technical documentation and resources

No documents available
