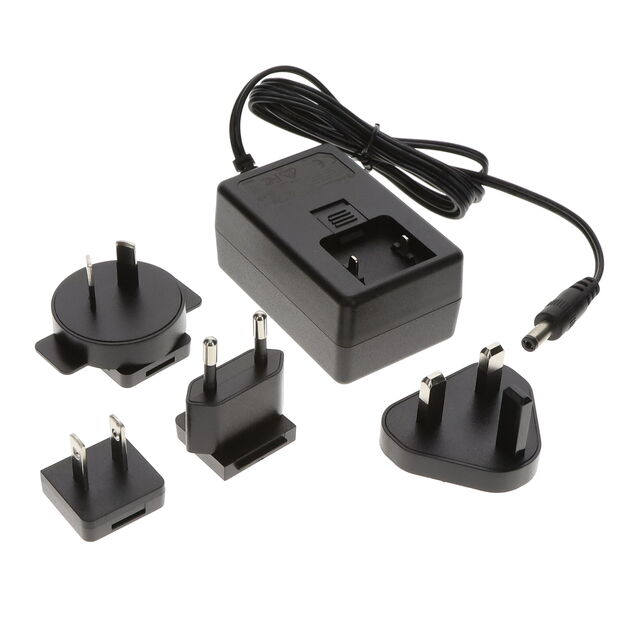

15DYS830-050400W-K

Active

IDEAL POWER

AC/DC WALL MOUNT ADAPTER 5V 20W

Deep-Dive with AI

Search across all available documentation for this part.

15DYS830-050400W-K

Active

IDEAL POWER

AC/DC WALL MOUNT ADAPTER 5V 20W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.84
		10	$ 14.56
		100	$ 11.99

Description

General part information

15DYS830 Series

5V 20 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	15DYS830-050400W-K	15DYS830 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, UL, TUV, cULus	CE, TUV, cULus, CE, UL, TUV
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	4 A	1 - 4 A
Efficiency	Level VI	Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II), Wall Mount (Class I)
Input Connector	Multi-Blade (Included)	CEE 7/16, NEMA 1-15P, Multi-Blade (Included), BS 1363
Input Type	Multi-Blade (Included)	Fixed Blade, Multi-Blade (Included)
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [z]	12 mm	12 mm
Polarization	Positive Center	Positive Center
Power (Watts)	20 W	20 - 30 W
Region Utilized	International	Europe, North America, International, United Kingdom
Size / Dimension [x]	3.02 "	3.02 "
Size / Dimension [x]	76.8 mm	76.8 mm
Size / Dimension [y]	1.87 "	1.87 - 1.96 in
Size / Dimension [y]	47.5 mm	47.5 - 50 mm
Size / Dimension [z]	1.38 in	1.22 - 1.38 in
Size / Dimension [z]	35 mm	31 - 35 mm
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	5 V	5 - 30 VDC
Weight	200.03 g	200.03 g
Weight	0.441 lb	0.441 lb

15DYS830 Series

AC/DC WALL MOUNT ADAPTER 30V 30W

Part	Approval Agency	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Region Utilized	Operating Temperature [Max]	Efficiency	Standard Number	Input Connector	Input Type	Form	Current - Output (Max) [Max]	Applications	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Polarization	Output Connector	Output Connector [diameter]	Output Connector [z]	Weight	Weight
IDEAL POWER 15DYS830-300100W-2-2.5	CE, TUV	30 W	48 mm	1.22 in	3.02 "	1.89 in	76.8 mm	31 mm	Europe	40 °C	Level VI	62368-1	CEE 7/16	Fixed Blade	Wall Mount (Class II)	1 A	ITE (Commercial)	30 VDC	90 VAC	264 VAC
IDEAL POWER 15DYS830-120250W-1-2.5	cULus	30 W	48 mm	1.22 in	3.02 "	1.89 in	76.8 mm	31 mm	North America	40 °C	Level VI	62368-1	NEMA 1-15P	Fixed Blade	Wall Mount (Class II)	2.5 A	ITE (Commercial)	12 V	90 VAC	264 VAC
IDEAL POWER 15DYS830-050400W-K	CE, cULus, TUV, UL	20 W	47.5 mm	1.38 in	3.02 "	1.87 "	76.8 mm	35 mm	International	40 °C	Level VI	62368-1	Multi-Blade (Included)	Multi-Blade (Included)	Wall Mount (Class II)	4 A	ITE (Commercial)	5 V	90 VAC	264 VAC	1.5 m	59 in	Positive Center	Barrel Plug	2.1 mm, 5.5 mm	12 mm	200.03 g	0.441 lb
IDEAL POWER 15DYS830-240125W-1-2.5	cULus	30 W	48 mm	1.22 in	3.02 "	1.89 in	76.8 mm	31 mm	North America	40 °C	Level VI	62368-1	NEMA 1-15P	Fixed Blade	Wall Mount (Class II)	1.25 A	ITE (Commercial)	24 V	90 VAC	264 VAC
IDEAL POWER 15DYS830-050400W-2-2.5	CE, TUV	20 W	48 mm	1.22 in	3.02 "	1.89 in	76.8 mm	31 mm	Europe	40 °C	Level VI	62368-1	CEE 7/16	Fixed Blade	Wall Mount (Class II)	4 A	ITE (Commercial)	5 V	90 VAC	264 VAC
IDEAL POWER 15DYS830-120250W-3-2.5	CE	30 W	50 mm	1.22 in	3.02 "	1.96 "	76.8 mm	31 mm	United Kingdom	40 °C	Level VI	62368-1	BS 1363	Fixed Blade	Wall Mount (Class I)	2.5 A	ITE (Commercial)	12 V	90 VAC	264 VAC
IDEAL POWER 15DYS830-120250W-K	CE, cULus, TUV, UL	30 W	47.5 mm	1.38 in	3.02 "	1.87 "	76.8 mm	35 mm	International	40 °C	Level VI	62368-1	Multi-Blade (Included)	Multi-Blade (Included)	Wall Mount (Class II)	2.5 A	ITE (Commercial)	12 V	90 VAC	264 VAC	1.5 m	59 in	Positive Center	Barrel Plug	2.1 mm, 5.5 mm	12 mm	200.03 g	0.441 lb
