Description
General part information
A6X30142891

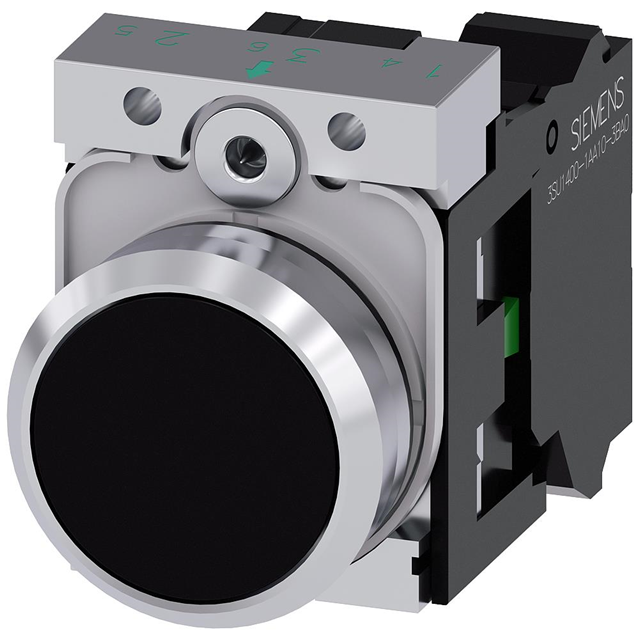

Pushbutton Switch SPST-NO Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | A6X30142891 |
|---|---|
| Actuator Type | Button, Round |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating | 10 A |
| Electrical Life (Cycles) | 10000000 |
| Ingress Protection Description | Waterproof, Water Resistant, Dust Tight |
| Ingress Protection IP Rating | IP66, IP67, IP69K |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Switch Function | Off-Mom |
| Termination Style | Spring Terminal |
| Type | Standard |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
