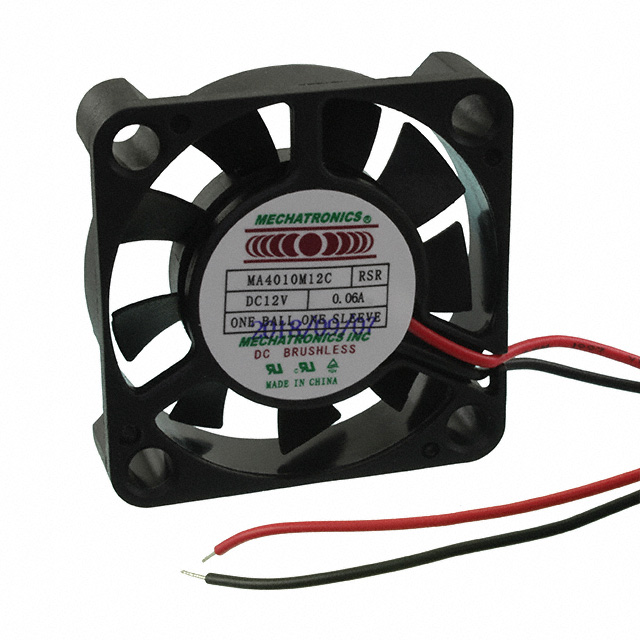

MA4010M12C-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 40X10MM 12VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN AXIAL 40X10MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MA4010M12C-RSR

Air Flow	0.118 m³/min
Air Flow	4.2 CFM
Approval Agency	UL, cUL
Bearing Type	1 Ball/1 Sleeve
Current Rating (Amps)	60 mA
Fan Type	Tubeaxial
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	24 dB
RPM	5000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.08 in H2O
Static Pressure	19.9 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	20.87 g
Weight	0.046 lb
Width [y]	10 mm

Part	Approval Agency	Termination	Static Pressure	Static Pressure	Current Rating (Amps)	Weight	Weight	RPM	Voltage Range [Min]	Voltage Range [Max]	Noise	Air Flow	Air Flow	Material - Blade	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Voltage - Rated	Bearing Type	Fan Type	Width [y]
Mechatronics Bearing Group MA4010M12C-RSR	cUL UL	2 Wire Leads	0.08 in H2O	19.9 Pa	60 mA	20.87 g	0.046 lb	5000 RPM	7 V	13.8 VDC	24 dB	0.118 m³/min	4.2 CFM	Polybutylene Terephthalate (PBT)	40 mm	Square	40 mm	12 VDC	1 Ball/1 Sleeve	Tubeaxial	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H 1 Ball/1 Sleeve 4.2 CFM (0.118mł/min) 2 Wire Leads
