8467 0601000

Active

Belden Inc.

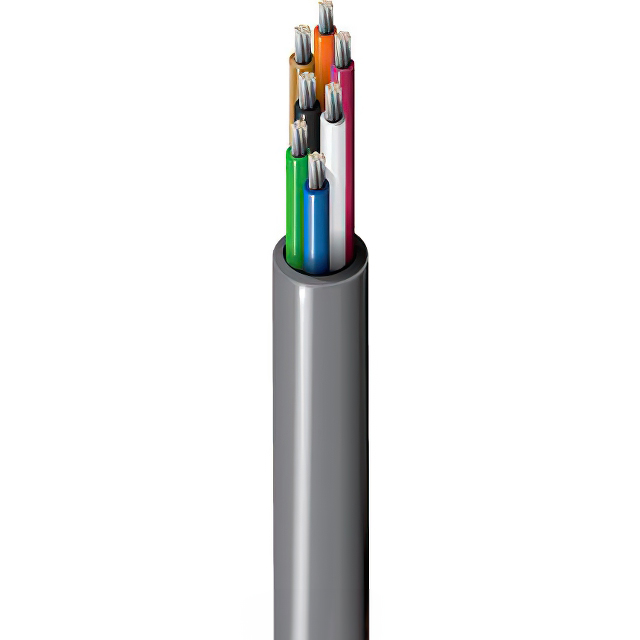

CABLE 7COND 18AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 7COND 18AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8467 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	7.85 mm
Jacket (Insulation) Diameter [diameter]	0.309 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	7
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2598
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Number of Conductors	Conductor Insulation	Cable Type	Length	Length [x]	Jacket (Insulation) Material	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Voltage	Ratings	Length
Belden Inc. 8467 060500	Copper Tinned	-20 C	60 °C	Audio Control Instrumentation	7	Poly-Vinyl Chloride (PVC)	Multi-Conductor	15.24 m	50 ft 500 '	Poly-Vinyl Chloride (PVC)	152.4 m	19	30 AWG	7.85 mm	0.309 in	Chrome	0.94 mm	0.037 in	18 AWG
Belden Inc. 8467 06010000	Copper Tinned	-20 C	60 °C	Audio Control Instrumentation	7	Poly-Vinyl Chloride (PVC)	Multi-Conductor	3048 m	10000 ft	Poly-Vinyl Chloride (PVC)		19	30 AWG	7.85 mm	0.309 in	Chrome	0.94 mm	0.037 in	18 AWG	300 V	UL Style 2598
Belden Inc. 8467 0601000	Copper Tinned	-20 C	60 °C	Audio Control Instrumentation	7	Poly-Vinyl Chloride (PVC)	Multi-Conductor	304.8 m		Poly-Vinyl Chloride (PVC)		19	30 AWG	7.85 mm	0.309 in	Chrome	0.94 mm	0.037 in	18 AWG	300 V	UL Style 2598	1000 ft
Belden Inc. 8467 060250	Copper Tinned	-20 C	60 °C	Audio Control Instrumentation	7	Poly-Vinyl Chloride (PVC)	Multi-Conductor	76.2 m		Poly-Vinyl Chloride (PVC)		19	30 AWG	7.85 mm	0.309 in	Chrome	0.94 mm	0.037 in	18 AWG	300 V	UL Style 2598	3000 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Conductor Multi-Conductor Cable Chrome 18 AWG 1000.0' (304.8m)
