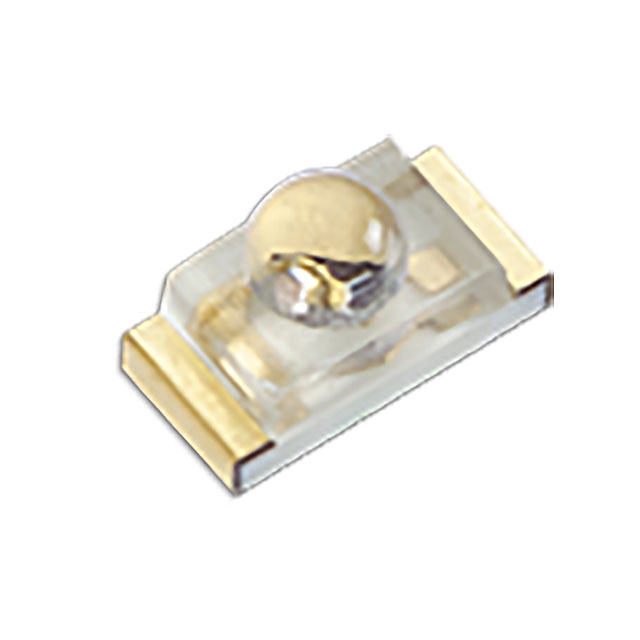

Specification	APTD1608SF4C

Current - DC Forward (If) (Max)	50 mA
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	Top View
Package / Case	0603 (1608 Metric)
Radiant Intensity (Ie) Min	0.8 mW/sr
Type	Infrared (IR)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	1.3 V
Wavelength	880 nm

APTD1608 Series

Part	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Wavelength - Peak	Package / Case	Package Name	Configuration	Lens Diameter	Lens Style	Lens Transparency	Height (Max)	Viewing Angle	Lens Color	Current - Test	Millicandela Rating	Size / Dimension Width	Size / Dimension Length	Mounting Type	Color
Kingbright APTD1608CGCK	2.1 V	570 nm	574 nm	0603 (1608 Metric)	Chip LED	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	60 °	Colorless	20 mA	190 mcd	0.8 mm	1.6 mm	Surface Mount	Green
Kingbright APTD1608VBC/D	3.3 V	470 nm	465 nm	0603 (1608 Metric)	Chip LED	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	40 °	Colorless	20 mA	350 mcd	0.8 mm	1.6 mm	Surface Mount	Blue
Kingbright APTD1608SYCK	2 V	590 nm	590 nm	0603 (1608 Metric)	Chip LED	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	60 °	Colorless	20 mA	450 mcd	0.8 mm	1.6 mm	Surface Mount	Yellow
Kingbright APTD1608SECK/J3-PF	2.2 V	625 nm	640 nm	0603 (1608 Metric)	2-SMD	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	60 °	Colorless	20 mA	800 mcd	0.8 mm	1.6 mm	Surface Mount	Red
Kingbright APTD1608SEC/J3	2.2 V	625 nm	640 nm	0603 (1608 Metric)	Chip LED	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	60 °	Colorless	20 mA	900 mcd	0.8 mm	1.6 mm	Surface Mount	Red
Kingbright APTD1608LVBC/D	2.65 V	470 nm	465 nm	0603 (1608 Metric)	2-SMD	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	40 °	Colorless	2 mA	65 mcd	0.8 mm	1.6 mm	Surface Mount	Blue
Kingbright APTD1608LQBC/D	2.65 V	465 nm	460 nm	0603 (1608 Metric)	1608	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	40 °	Colorless	2 mA	20 mcd	0.8 mm	1.6 mm	Surface Mount	Blue
Kingbright APTD1608SYCK/J3-PF	2 V	590 nm	590 nm	0603 (1608 Metric)	2-SMD	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	60 °	Colorless	20 mA	800 mcd	0.8 mm	1.6 mm	Surface Mount	Yellow
Kingbright APTD1608LSECK/J3-PF	1.8 V	625 nm	640 nm	0603 (1608 Metric)	2-SMD	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	60 °	Colorless	2 mA	50 mcd	0.8 mm	1.6 mm	Surface Mount	Red
Kingbright APTD1608SURCK	1.95 V	630 nm	645 nm	0603 (1608 Metric)	Chip LED	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	60 °	Colorless	20 mA	250 mcd	0.8 mm	1.6 mm	Surface Mount	Red
