6-104910-6
ActiveTE Connectivity AMP Connectors

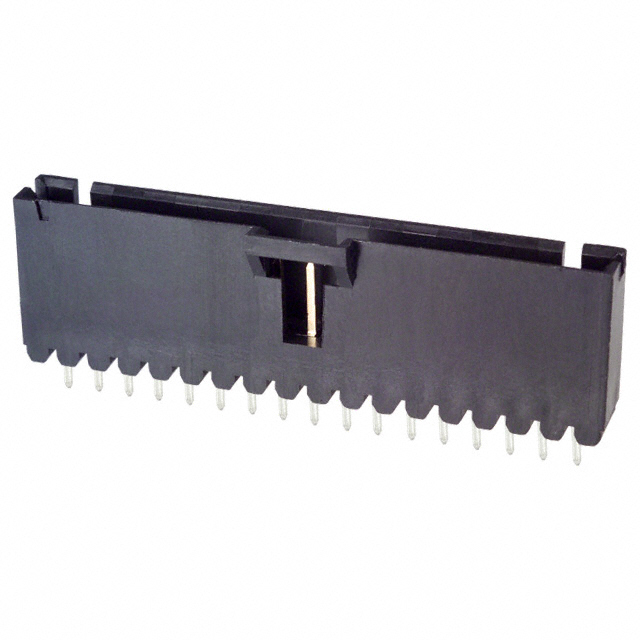

CONN HEADER VERT 17POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
6-104910-6
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 17POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6-104910-6 | 104910 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post | 0.13 in | 0.13 in |
| Contact Length - Post | 3.3 mm | 3.3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 13.6 mm | 13.6 mm |
| Insulation Height | 0.535 in | 0.535 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | - | 13 - 24 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 0.545 in | 0.545 in |
| Overall Contact Length | 13.84 mm | 13.84 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1584 | $ 2.13 | |
104910 Series
CONN HEADER VERT 17POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Overall Contact Length | Overall Contact Length | Number of Rows | Mounting Type | Shrouding | Contact Length - Post | Contact Length - Post | Insulation Color | Material Flammability Rating | Contact Shape | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Contact Type | Contact Length - Mating [x] | Contact Length - Mating | Fastening Type | Contact Material | Features | Pitch - Mating | Pitch - Mating | Style | Connector Type | Termination | Contact Finish - Mating | Contact Finish - Post | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 6-104910-6 | 2.54 µm | 100 µin | 13.6 mm | 0.535 in | All | -65 ░C | 105 ░C | 3 A | 0.545 in | 13.84 mm | 1 | Through Hole | Shrouded - 4 Wall | 0.13 in | 3.3 mm | Black | UL94 V-0 | Square | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | Thermoplastic | Male Pin | 0.23 in | 5.84 mm | Latch Holder | Brass | Keying Slot | 0.1 in | 2.54 mm | Board to Board, Cable | Header | Solder | Gold | Tin | |
TE Connectivity AMP Connectors 6-104910-7 | 2.54 µm | 100 µin | 13.6 mm | 0.535 in | All | -65 ░C | 105 ░C | 3 A | 0.545 in | 13.84 mm | 1 | Through Hole | Shrouded - 4 Wall | 0.13 in | 3.3 mm | Black | UL94 V-0 | Square | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | Thermoplastic | Male Pin | 0.23 in | 5.84 mm | Latch Holder | Brass | Keying Slot | 0.1 in | 2.54 mm | Board to Board, Cable | Header | Solder | Gold | Tin | 18 |
TE Connectivity AMP Connectors 6-104910-8 | 2.54 µm | 100 µin | 13.6 mm | 0.535 in | All | -65 ░C | 105 ░C | 3 A | 0.545 in | 13.84 mm | 1 | Through Hole | Shrouded - 4 Wall | 0.13 in | 3.3 mm | Black | UL94 V-0 | Square | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | Thermoplastic | Male Pin | 0.23 in | 5.84 mm | Latch Holder | Brass | Keying Slot | 0.1 in | 2.54 mm | Board to Board, Cable | Header | Solder | Gold | Tin | 19 |
TE Connectivity AMP Connectors 7-104910-3 | 2.54 µm | 100 µin | 13.6 mm | 0.535 in | All | -65 ░C | 105 ░C | 3 A | 0.545 in | 13.84 mm | 1 | Through Hole | Shrouded - 4 Wall | 0.13 in | 3.3 mm | Black | UL94 V-0 | Square | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | Thermoplastic | Male Pin | 0.23 in | 5.84 mm | Latch Holder | Brass | Keying Slot | 0.1 in | 2.54 mm | Board to Board, Cable | Header | Solder | Gold | Tin | 24 |
TE Connectivity AMP Connectors 6-104910-4 | 2.54 µm | 100 µin | 13.6 mm | 0.535 in | All | -65 ░C | 105 ░C | 3 A | 0.545 in | 13.84 mm | 1 | Through Hole | Shrouded - 4 Wall | 0.13 in | 3.3 mm | Black | UL94 V-0 | Square | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | Thermoplastic | Male Pin | 0.23 in | 5.84 mm | Latch Holder | Brass | Keying Slot | 0.1 in | 2.54 mm | Board to Board, Cable | Header | Solder | Gold | Tin | 15 |
TE Connectivity AMP Connectors 1-104910-3 | 2.54 µm | 100 µin | 13.6 mm | 0.535 in | All | -65 ░C | 105 ░C | 3 A | 0.545 in | 13.84 mm | 1 | Through Hole | Shrouded - 4 Wall | 0.13 in | 3.3 mm | Black | UL94 V-0 | Square | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | Thermoplastic | Male Pin | 0.23 in | 5.84 mm | Latch Holder | Brass | Keying Slot | 0.1 in | 2.54 mm | Board to Board, Cable | Header | Solder | Gold | Tin-Lead | 14 |
TE Connectivity AMP Connectors 7-104910-0 | 2.54 µm | 100 µin | 13.6 mm | 0.535 in | All | -65 ░C | 105 ░C | 3 A | 0.545 in | 13.84 mm | 1 | Through Hole | Shrouded - 4 Wall | 0.13 in | 3.3 mm | Black | UL94 V-0 | Square | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | Thermoplastic | Male Pin | 0.23 in | 5.84 mm | Latch Holder | Brass | Keying Slot | 0.1 in | 2.54 mm | Board to Board, Cable | Header | Solder | Gold | Tin | 21 |
TE Connectivity AMP Connectors 6-104910-2 | 2.54 µm | 100 µin | 13.6 mm | 0.535 in | All | -65 ░C | 105 ░C | 3 A | 0.545 in | 13.84 mm | 1 | Through Hole | Shrouded - 4 Wall | 0.13 in | 3.3 mm | Black | UL94 V-0 | Square | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | Thermoplastic | Male Pin | 0.23 in | 5.84 mm | Latch Holder | Brass | Keying Slot | 0.1 in | 2.54 mm | Board to Board, Cable | Header | Solder | Gold | Tin | 13 |
TE Connectivity AMP Connectors 6-104910-9 | 2.54 µm | 100 µin | 13.6 mm | 0.535 in | All | -65 ░C | 105 ░C | 3 A | 0.545 in | 13.84 mm | 1 | Through Hole | Shrouded - 4 Wall | 0.13 in | 3.3 mm | Black | UL94 V-0 | Square | Automotive, General Purpose, Medical, Telecommunications | 15 µin | 0.38 µm | Thermoplastic | Male Pin | 0.23 in | 5.84 mm | Latch Holder | Brass | Keying Slot | 0.1 in | 2.54 mm | Board to Board, Cable | Header | Solder | Gold | Tin | 20 |
Description
General part information
104910 Series
Connector Header Through Hole 17 position 0.100" (2.54mm)
