EN2C6F26DC

Active

Switchcraft Inc.

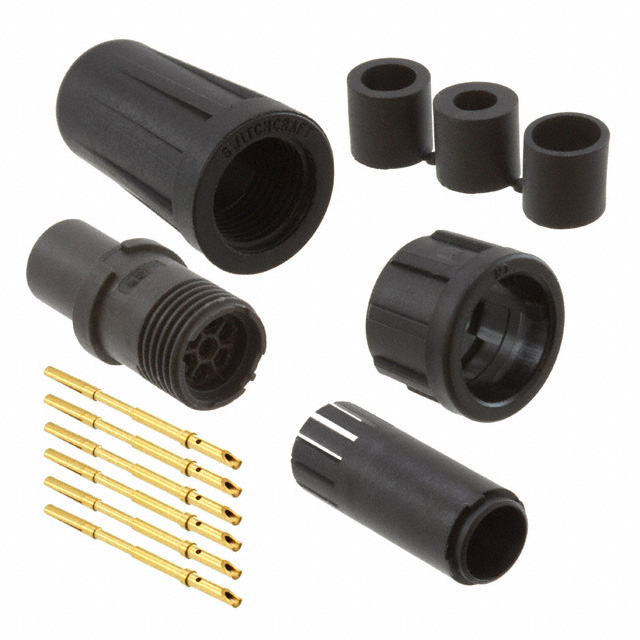

STANDARD CIRCULAR CONNECTOR 6-26 F S/C CORD CON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN2C6F26DC

Active

Switchcraft Inc.

STANDARD CIRCULAR CONNECTOR 6-26 F S/C CORD CON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2C6F26DC	EN2C6F Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	0.18 in
Cable Opening	-	0.22 in
Cable Opening	-	4.57 mm
Cable Opening	-	5.59 mm
Cable Opening	-	4.57 mm
Cable Opening	-	3.56 mm
Cable Opening	-	0.14 in
Cable Opening	-	0.18 in
Cable Opening	-	2.54 - 3.56 mm
Cable Opening	-	0.1 - 0.14 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, Backshell	Coupling Nut, Backshell, Winged
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

EN2C6F Series

CONN PLUG FMALE 6POS GOLD CRIMP

Part	Backshell Material, Plating	Features	Connector Type	Applications	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Termination	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Orientation	Ingress Protection	Contact Material	Insert Material	Primary Material	Color	Shielding	Fastening Type	Material Flammability Rating	Mounting Type	Voltage Rating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Switchcraft Inc. EN2C6F26G3	Thermoplastic	Backshell, Coupling Nut	Female Sockets, Plug	Communication Systems, Industrial, Marine, Medical	0.18 in	0.22 in	4.57 mm	5.59 mm	Crimp, Solder Cup	Gold	85 °C	-40 °C	6	Keyed	IP66, IP67, IP68	Copper Alloy	Elastomer	Plastic	Black	Unshielded	Bayonet Lock	UL94 V-0	Free Hanging (In-Line)	125 VAC
Switchcraft Inc. EN2C6F26G2W	Thermoplastic	Backshell, Coupling Nut, Winged	Female Sockets, Plug	Communication Systems, Industrial, Marine, Medical					Crimp, Solder Cup	Gold	85 °C	-40 °C	6	Keyed	IP66, IP67, IP68	Copper Alloy	Elastomer	Plastic	Black	Unshielded	Bayonet Lock	UL94 V-0	Free Hanging (In-Line)	125 VAC	4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C6F26G2	Thermoplastic	Backshell, Coupling Nut	Female Sockets, Plug	Communication Systems, Industrial, Marine, Medical					Crimp, Solder Cup	Gold	85 °C	-40 °C	6	Keyed	IP66, IP67, IP68	Copper Alloy	Elastomer	Plastic	Black	Unshielded	Bayonet Lock	UL94 V-0	Free Hanging (In-Line)	125 VAC	4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C6F26G3W	Thermoplastic	Backshell, Coupling Nut, Winged	Female Sockets, Plug	Communication Systems, Industrial, Marine, Medical	0.18 in	0.22 in	4.57 mm	5.59 mm	Crimp, Solder Cup	Gold	85 °C	-40 °C	6	Keyed	IP66, IP67, IP68	Copper Alloy	Elastomer	Plastic	Black	Unshielded	Bayonet Lock	UL94 V-0	Free Hanging (In-Line)	125 VAC
Switchcraft Inc. EN2C6F26G1	Thermoplastic	Backshell, Coupling Nut	Female Sockets, Plug	Communication Systems, Industrial, Marine, Medical					Crimp, Solder Cup	Gold	85 °C	-40 °C	6	Keyed	IP66, IP67, IP68	Copper Alloy	Elastomer	Plastic	Black	Unshielded	Bayonet Lock	UL94 V-0	Free Hanging (In-Line)	125 VAC					2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C6F26DCW	Thermoplastic	Backshell, Coupling Nut, Winged	Female Sockets, Plug	Communication Systems, Industrial, Marine, Medical					Crimp, Solder Cup	Gold	85 °C	-40 °C	6	Keyed	IP66, IP67, IP68	Copper Alloy	Elastomer	Plastic	Black	Unshielded	Bayonet Lock	UL94 V-0	Free Hanging (In-Line)	125 VAC
Switchcraft Inc. EN2C6F26DC	Thermoplastic	Backshell, Coupling Nut	Female Sockets, Plug	Communication Systems, Industrial, Marine, Medical					Crimp, Solder Cup	Gold	85 °C	-40 °C	6	Keyed	IP66, IP67, IP68	Copper Alloy	Elastomer	Plastic	Black	Unshielded	Bayonet Lock	UL94 V-0	Free Hanging (In-Line)	125 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 12.31
Sager	N/A	100	$ 13.30
		200	$ 13.13

Description

General part information

EN2C6F Series

6 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup
