2STC4793

Active

STMicroelectronics

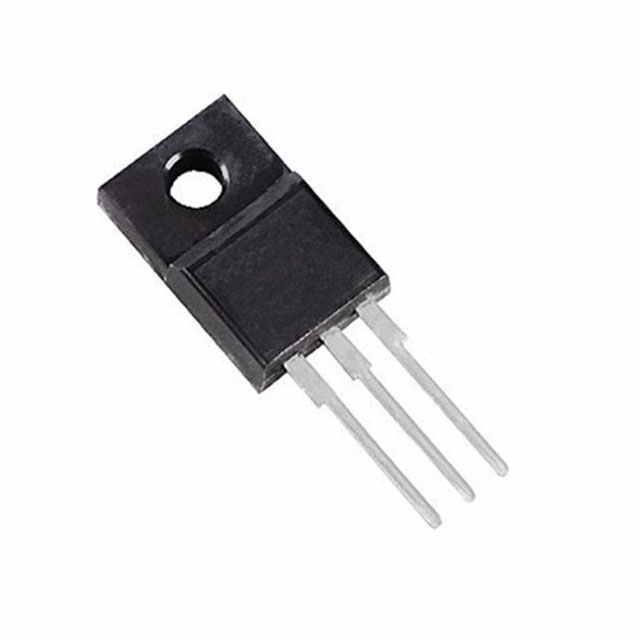

TRANS NPN 230V 1A TO220FP

Search across all available documentation for this part.

Active

STMicroelectronics

TRANS NPN 230V 1A TO220FP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2STC4793	2STC Series

Current - Collector (Ic) (Max) [Max]	1 A	1 - 15 A
Current - Collector Cutoff (Max) [Max]	1 µA	1 - 5 µA
DC Current Gain (hFE) (Min) @ Ic, Vce	-	80
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100 hFE	100 hFE
Frequency - Transition	100 MHz	30 - 100 MHz
Mounting Type	Through Hole	Through Hole
Operating Temperature	150 °C	150 °C
Package / Case	TO-220-3 Full Pack	TO-220-3 Full Pack, SC-65-3, TO-3P-3
Power - Max [Max]	20 W	20 - 150 W
Supplier Device Package	TO-220FP	TO-220FP, TO-3P
Transistor Type	NPN	NPN
Vce Saturation (Max) @ Ib, Ic	1 V	1 - 3 V
Voltage - Collector Emitter Breakdown (Max)	230 V	230 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

TRANS NPN 230V 1A TO220FP

Part	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max)	Vce Saturation (Max) @ Ib, Ic	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Mounting Type	Transistor Type	Operating Temperature	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector Cutoff (Max) [Max]	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce
STMicroelectronics 2STC4793	20 W	230 V	1 V	100 MHz	1 A	TO-220FP	Through Hole	NPN	150 °C	100 hFE	1 µA	TO-220-3 Full Pack
STMicroelectronics 2STC5242	150 W	230 V	3 V	30 MHz	15 A	TO-3P	Through Hole	NPN	150 °C		5 µA	SC-65-3, TO-3P-3	80

General part information

Bipolar (BJT) Transistor NPN 230 V 1 A 100MHz 20 W Through Hole TO-220FP
