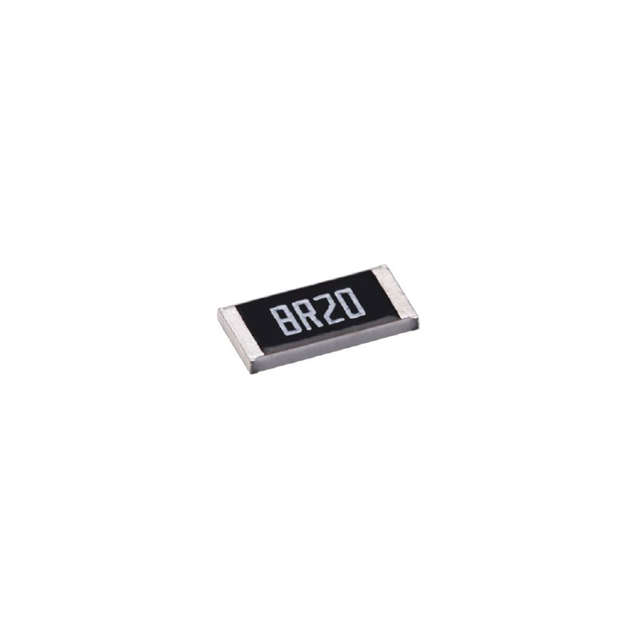

AR03BTCX1741A - AR03BTBX1201A

AR03BTCX1741A

Active
Viking Tech

RES 1.74K OHM 0.1% 1/10W 0603

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
AR03BTCX1741A - AR03BTBX1201A

AR03BTCX1741A

Active
Viking Tech

RES 1.74K OHM 0.1% 1/10W 0603

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationAR03BTCX1741AAR03BTC Series
CompositionThin FilmThin Film
FeaturesAutomotive AEC-Q200Automotive AEC-Q200
Height - Seated (Max) [Max] [z]0.022 in0.022 in
Height - Seated (Max) [Max] [z]0.55 mm0.55 mm
Number of Terminations22
Operating Temperature [Max]155 °C155 °C
Operating Temperature [Min]-55 °C-55 °C
Package / Case0603 (1608 Metric)0603 (1608 Metric)
Power (Watts)0.1 W0.063 - 0.1 W
Power (Watts)0.1 W0.0625 - 0.167 W
Power (Watts)-0.16666666666666666 W
RatingsAEC-Q200AEC-Q200
Resistance-1 - 150000 kOhms
Temperature Coefficient25 ppm/°C25 ppm/°C
Tolerance0.1 %0.1 %

AR03BTC Series

RES 57.6K OHM 0.1% 1/10W 0603

...
PartHeight - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]Temperature CoefficientCompositionNumber of TerminationsTolerancePackage / CaseResistancePower (Watts)Power (Watts)Operating Temperature [Max]Operating Temperature [Min]RatingsFeaturesPower (Watts)
Viking Tech
AR03BTCX5762
0.022 in
0.55 mm
25 ppm/°C
Thin Film
2
0.1 %
0603 (1608 Metric)
57.6 kOhms
0.1 W
0.1 W
155 °C
-55 °C
Viking Tech
AR03BTCX6341A
0.022 in
0.55 mm
25 ppm/°C
Thin Film
2
0.1 %
0603 (1608 Metric)
6.34 kOhms
0.1 W
0.1 W
155 °C
-55 °C
AEC-Q200
Automotive AEC-Q200
Viking Tech
AR03BTCX9100
0.022 in
0.55 mm
25 ppm/°C
Thin Film
2
0.1 %
0603 (1608 Metric)
910 Ohms
0.1 W
0.1 W
155 °C
-55 °C
Viking Tech
AR03BTCX64R9
0.022 in
0.55 mm
25 ppm/°C
Thin Film
2
0.1 %
0603 (1608 Metric)
64.9 Ohms
0.1 W
0.1 W
155 °C
-55 °C
Viking Tech
AR03BTCX2263
0.022 in
0.55 mm
25 ppm/°C
Thin Film
2
0.1 %
0603 (1608 Metric)
226 kOhms
0.1 W
0.1 W
155 °C
-55 °C
Viking Tech
AR03BTCX1871
0.022 in
0.55 mm
25 ppm/°C
Thin Film
2
0.1 %
0603 (1608 Metric)
1.87 kOhms
0.1 W
0.1 W
155 °C
-55 °C
Viking Tech
AR03BTCX0010
0.022 in
0.55 mm
25 ppm/°C
Thin Film
2
0.1 %
0603 (1608 Metric)
1 Ohms
0.1 W
0.1 W
155 °C
-55 °C
Viking Tech
AR03BTCX9533
0.022 in
0.55 mm
25 ppm/°C
Thin Film
2
0.1 %
0603 (1608 Metric)
953 kOhms
0.1 W
0.1 W
155 °C
-55 °C
Viking Tech
AR03BTCX1270
0.022 in
0.55 mm
25 ppm/°C
Thin Film
2
0.1 %
0603 (1608 Metric)
127 Ohms
0.1 W
0.1 W
155 °C
-55 °C
Viking Tech
AR03BTCX3602
0.022 in
0.55 mm
25 ppm/°C
Thin Film
2
0.1 %
0603 (1608 Metric)
36 kOhms
0.1 W
0.1 W
155 °C
-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTape & Reel (TR) 1$ 0.34
10$ 0.24
100$ 0.10
150$ 0.09

Description

General part information

AR03BTC Series

1.74 kOhms ±0.1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200 Thin Film
