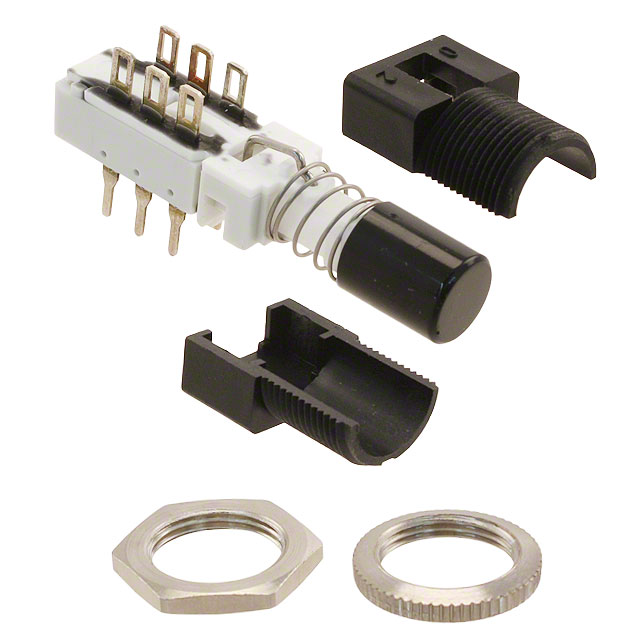

ZF12 FG BK 2U EE
ObsoleteLITTELFUSE
SWITCH PUSH DPDT 0.5A 125V
ZF12 FG BK 2U EE
ObsoleteLITTELFUSE
SWITCH PUSH DPDT 0.5A 125V
Description
General part information
ZF12 FG BK 2U EE
Pushbutton Switch DPDT Standard Panel Mount, Right Angle, Rear
Technical Specifications
Parameters and characteristics for this part
| Specification | ZF12 FG BK 2U EE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating | 500 mA |
| Electrical Life (Cycles) | 100000 Cycles |
| Mechanical Life (Cycles) | 100000 Cycles |
| Mounting Type | Rear, Right Angle, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 12 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-On |
| Termination Style | Solder Lug, PC Pin |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
