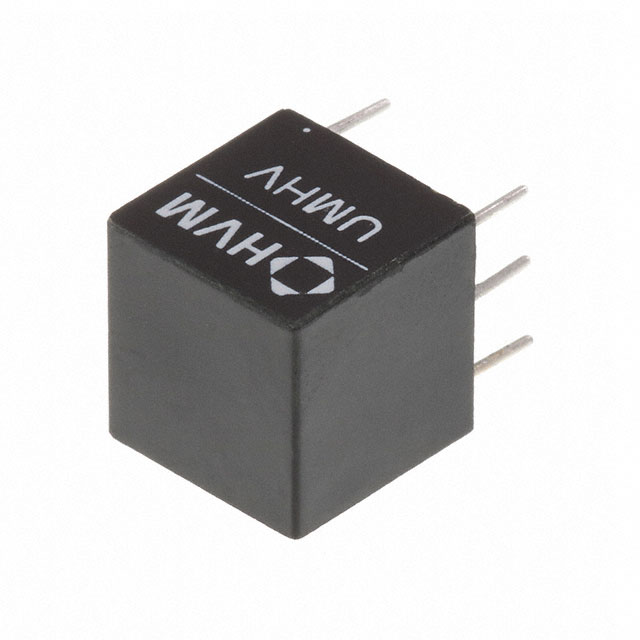

UMHV0520N

Active

HVM Technology, Inc.

DC DC CONVERTER -2000V 500MW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UMHV0520N

Active

HVM Technology, Inc.

DC DC CONVERTER -2000V 500MW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UMHV0520N	UMHV05 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	250 µA	1 - 500 µA
Efficiency	55 %	55 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	5-DIP Module	5-DIP Module
Power (Watts)	0.5 W	0.5 W
Size / Dimension [x]	12.7 mm	12.7 mm
Size / Dimension [y]	12.7 mm	12.7 mm
Size / Dimension [z]	12.7 mm	12.7 mm
Type	High Voltage - Isolated Module	High Voltage - Isolated Module
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Isolation	500 V	500 V
Voltage - Output 1	-2000 V	-5000 - 5000 V

UMHV05 Series

DC DC CONVERTER 1000V 500MW

Part	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Mounting Type	Number of Outputs	Voltage - Input (Max) [Max]	Applications	Voltage - Isolation	Type	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
HVM Technology, Inc. UMHV0510	500 µA	4.5 V	5-DIP Module	1000 V	70 °C	-55 °C	55 %	Through Hole	1	5.5 V	ITE (Commercial)	500 V	High Voltage - Isolated Module	0.5 W	12.7 mm	12.7 mm	12.7 mm
HVM Technology, Inc. UMHV0512N	417 µA	4.5 V	5-DIP Module	-1200 V	70 °C	-55 °C	55 %	Through Hole	1	5.5 V	ITE (Commercial)	500 V	High Voltage - Isolated Module		12.7 mm	12.7 mm	12.7 mm
HVM Technology, Inc. UMHV0550	100 µA	4.5 V	5-DIP Module	5000 V	70 °C	-55 °C	55 %	Through Hole	1	5.5 V	ITE (Commercial)	500 V	High Voltage - Isolated Module	0.5 W	12.7 mm	12.7 mm	12.7 mm
HVM Technology, Inc. UMHV0520N	250 µA	4.5 V	5-DIP Module	-2000 V	70 °C	-55 °C	55 %	Through Hole	1	5.5 V	ITE (Commercial)	500 V	High Voltage - Isolated Module	0.5 W	12.7 mm	12.7 mm	12.7 mm
HVM Technology, Inc. UMHV0530	167 µA	4.5 V	5-DIP Module	3000 V	70 °C	-55 °C	55 %	Through Hole	1	5.5 V	ITE (Commercial)	500 V	High Voltage - Isolated Module	0.5 W	12.7 mm	12.7 mm	12.7 mm
HVM Technology, Inc. UMHV0540N	125 µA	4.5 V	5-DIP Module	-4000 V	70 °C	-55 °C	55 %	Through Hole	1	5.5 V	ITE (Commercial)	500 V	High Voltage - Isolated Module	0.5 W	12.7 mm	12.7 mm	12.7 mm
HVM Technology, Inc. UMHV0550N	100 µA	4.5 V	5-DIP Module	-5000 V	70 °C	-55 °C	55 %	Through Hole	1	5.5 V	ITE (Commercial)	500 V	High Voltage - Isolated Module	0.5 W	12.7 mm	12.7 mm	12.7 mm
HVM Technology, Inc. UMHV0520	250 µA	4.5 V	5-DIP Module	2000 V	70 °C	-55 °C	55 %	Through Hole	1	5.5 V	ITE (Commercial)	500 V	High Voltage - Isolated Module	0.5 W	12.7 mm	12.7 mm	12.7 mm
HVM Technology, Inc. UMHV0512	417 µA	4.5 V	5-DIP Module	1200 V	70 °C	-55 °C	55 %	Through Hole	1	5.5 V	ITE (Commercial)	500 V	High Voltage - Isolated Module		12.7 mm	12.7 mm	12.7 mm
HVM Technology, Inc. UMHV0540	125 µA	4.5 V	5-DIP Module	4000 V	70 °C	-55 °C	55 %	Through Hole	1	5.5 V	ITE (Commercial)	500 V	High Voltage - Isolated Module	0.5 W	12.7 mm	12.7 mm	12.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 171.25

Description

General part information

UMHV05 Series

High Voltage - Isolated Module DC DC Converter 1 Output -2000V 250µA 4.5V - 5.5V Input
