Description
General part information

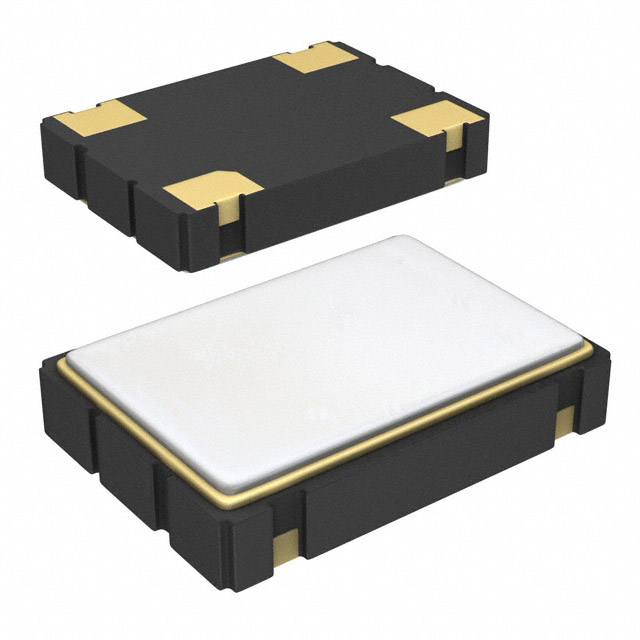

SG-8003CA-PDL
XO (Standard) CMOS 1 MHz ~ 166 MHz Programmable Oscillator 2.5V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SG-8003CA-PDL |
|---|---|
| Available Frequency Range (Maximum) | 166 MHz |
| Available Frequency Range (Minimum) | 1 MHz |
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 8 mA |
| Current - Supply (Max) | 15 mA |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.055 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
