Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3402.0003.11 | OMF 63 Series |
|---|---|---|
| Breaking Capacity @ Rated Voltage | 50 A | 50 A |
| Current Rating (Amps) | 63 mA | 2 - 160 mA |
| Fuse Type | Board Mount | Board Mount |
| Melting I˛t | 0.00011 | 0.00011 - 0.44 |
| Melting I²t | - | 0.0018 |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | 2-SMD, J-Lead | 2-SMD, J-Lead |
| Response Time | Fast Blow | Fast Blow |
| Size / Dimension [x] | 7.4 mm | 7.4 mm |
| Size / Dimension [x] | 0.291 " | 0.291 " |
| Size / Dimension [y] | 0.122 in | 0.122 in |
| Size / Dimension [y] | 3.1 mm | 3.1 mm |
| Size / Dimension [z] | 2.6 mm | 2.6 mm |
| Size / Dimension [z] | 0.102 " | 0.102 " |
| Voltage Rating - AC | 63 V | 63 V |
| Voltage Rating - DC | 63 VDC | 63 VDC |

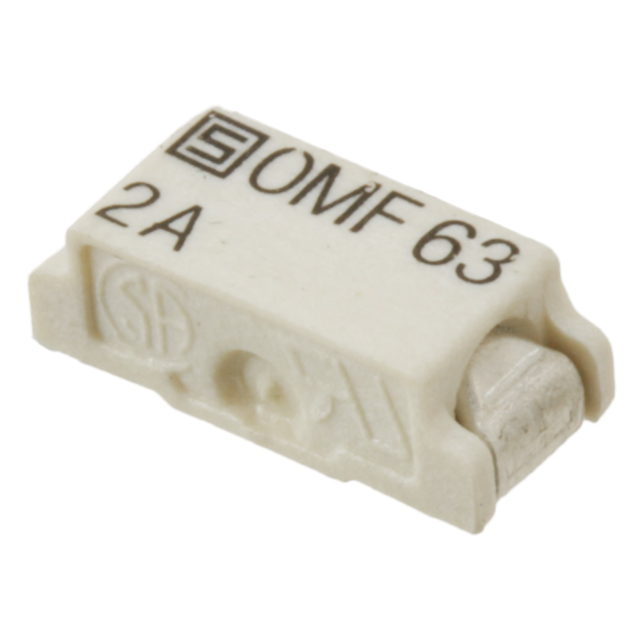

OMF 63 Series
"OMF 63, 0.16 A, 63 VDC, 63 VAC, , QUICK-ACTING F, 100 PCS., FUSE , SMT, 7.4 X 3.1 MM\/
| Part | Mounting Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Melting I˛t | Voltage Rating - DC | Package / Case | Fuse Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Response Time | Breaking Capacity @ Rated Voltage | Voltage Rating - AC | Melting I²t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 3402.0003.11 | Surface Mount | 63 mA | -55 °C | 125 °C | 0.00011 | 63 VDC | 2-SMD, J-Lead | Board Mount | 0.122 in | 7.4 mm | 2.6 mm | 3.1 mm | 0.291 " | 0.102 " | Fast Blow | 50 A | 63 V | |
SCHURTER Inc. 3402.0012.22 | Surface Mount | 2 A | -55 °C | 125 °C | 0.44 | 63 VDC | 2-SMD, J-Lead | Board Mount | 0.122 in | 7.4 mm | 2.6 mm | 3.1 mm | 0.291 " | 0.102 " | Fast Blow | 50 A | 63 V | |
SCHURTER Inc. 3402.0005.11 | Surface Mount | 160 mA | -55 °C | 125 °C | 63 VDC | 2-SMD, J-Lead | Board Mount | 0.122 in | 7.4 mm | 2.6 mm | 3.1 mm | 0.291 " | 0.102 " | Fast Blow | 50 A | 63 V | 0.0018 |
