9946 060500

Active

Belden Inc.

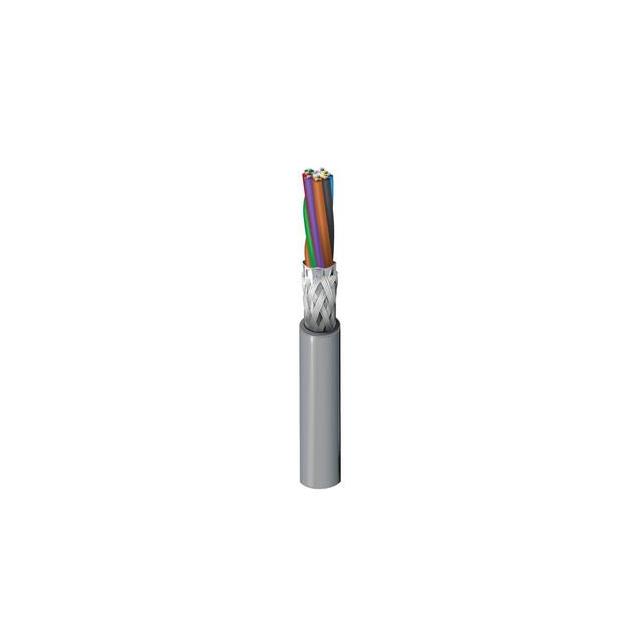

CABLE 10COND 22AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 10COND 22AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9946 060500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	7.62 mm
Jacket (Insulation) Diameter [diameter]	0.3 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	22 AWG

Part	Usage	Wire Gauge	Shield Material	Jacket (Insulation) Material	Shield Coverage	Length	Length	Shield Type	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Ratings	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Insulation	Length [x]	Length [x]
Belden Inc. 9946 0601000	Computer	22 AWG	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	65 % 100 %	1000 ft	304.8 m	Braid Foil	10	-30 ░C	80 C	0.889 mm	0.035 in	Copper Tinned	7	30 AWG	300 V	UL Style 2464	Chrome	7.62 mm	0.3 in	Multi-Conductor	Poly-Vinyl Chloride (PVC)
Belden Inc. 9946 060500	Computer	22 AWG	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	65 % 100 %			Braid Foil	10	-30 ░C	80 C	0.889 mm	0.035 in	Copper Tinned	7	30 AWG	300 V	UL Style 2464	Chrome	7.62 mm	0.3 in	Multi-Conductor	Poly-Vinyl Chloride (PVC)	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 5.33

General part information

10 Conductor Multi-Conductor Cable Chrome 22 AWG Foil, Braid 500.0' (152.4m)
