3282-4SG-530

Active

Conxall/Switchcraft

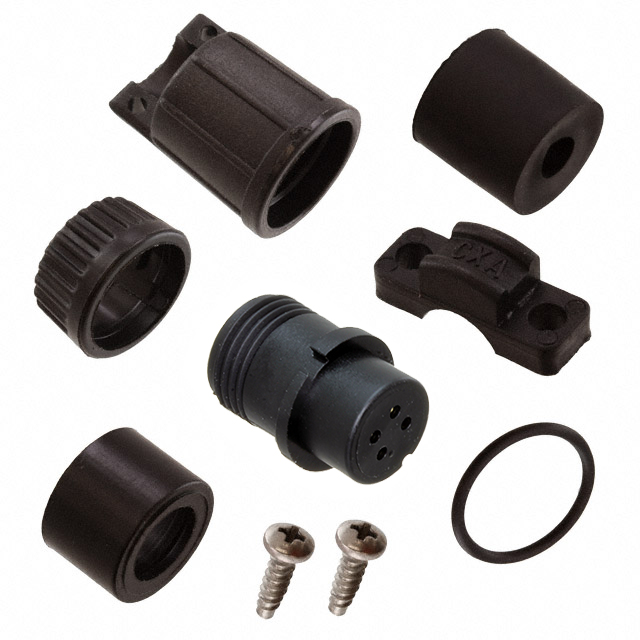

CONN PLUG FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Multi-Con-X Connectors

3282-4SG-530

Active

Conxall/Switchcraft

CONN PLUG FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Multi-Con-X Connectors

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.98
		10	$ 7.96
		25	$ 7.65
		50	$ 7.35
		100	$ 7.19

Description

General part information

3282-4S Series

4 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Multi-Con-X Connectors

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3282-4SG-530	3282-4S Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	7.37 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening [Max] [diameter]	0.32 in	0.29 - 0.32 in
Cable Opening [Max] [diameter]	8.13 mm	8.13 mm
Cable Opening [Min] [diameter]	7.62 mm	7.11 - 7.62 mm
Cable Opening [Min] [diameter]	0.3 in	0.28 - 0.3 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

3282-4S Series

CONN PLUG FMALE 4P GOLD SLDR CUP

Part	Backshell Material, Plating	Current Rating (Amps)	Ingress Protection	Shielding	Fastening Type	Voltage Rating	Primary Material	Color	Connector Type	Contact Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Orientation	Number of Positions	Mounting Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3282-4SG-330	Nylon, Polyamide (PA)	5.6 A	Weathertight	Unshielded	Bayonet Lock	600 V	Plastic	Black	Female Sockets, Plug	Brass	Gold	-40 °C	115 °C	Backshell	Keyed	4	Free Hanging (In-Line)	7.62 mm	0.32 in	8.13 mm	0.3 in
Conxall/Switchcraft 3282-4SG-528	Nylon, Polyamide (PA)	5.6 A	Weathertight	Unshielded	Bayonet Lock	600 V	Plastic	Black	Female Sockets, Plug	Brass	Gold	-40 °C	115 °C	Backshell, Cable Clamp	Keyed	4	Free Hanging (In-Line)	7.11 mm	0.29 in		0.28 in	7.37 mm
Conxall/Switchcraft 3282-4SG-328	Nylon, Polyamide (PA)	5.6 A	Weathertight	Unshielded	Bayonet Lock	600 V	Plastic	Black	Female Sockets, Plug	Brass	Gold	-40 °C	115 °C	Backshell	Keyed	4	Free Hanging (In-Line)	7.11 mm	0.29 in		0.28 in	7.37 mm
Conxall/Switchcraft 3282-4SG-530	Nylon, Polyamide (PA)	5.6 A	Weathertight	Unshielded	Bayonet Lock	600 V	Plastic	Black	Female Sockets, Plug	Brass	Gold	-40 °C	115 °C	Backshell, Cable Clamp	Keyed	4	Free Hanging (In-Line)	7.62 mm	0.32 in	8.13 mm	0.3 in
Conxall/Switchcraft 3282-4SG-518	Nylon, Polyamide (PA)	5.6 A	Weathertight	Unshielded	Bayonet Lock	600 V	Plastic	Black	Female Sockets, Plug	Brass	Gold	-40 °C	115 °C	Backshell, Cable Clamp	Keyed	4	Free Hanging (In-Line)						4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3282-4SG-515	Nylon, Polyamide (PA)	5.6 A	Weathertight	Unshielded	Bayonet Lock	600 V	Plastic	Black	Female Sockets, Plug	Brass	Gold	-40 °C	115 °C	Backshell, Cable Clamp	Keyed	4	Free Hanging (In-Line)										0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3282-4SG-3DC	Nylon, Polyamide (PA)	5.6 A	Weathertight	Unshielded	Bayonet Lock	600 V	Plastic	Black	Female Sockets, Plug	Brass	Gold	-40 °C	115 °C	Backshell	Keyed	4	Free Hanging (In-Line)
Conxall/Switchcraft 3282-4SG-318	Nylon, Polyamide (PA)	5.6 A	Weathertight	Unshielded	Bayonet Lock	600 V	Plastic	Black	Female Sockets, Plug	Brass	Gold	-40 °C	115 °C	Backshell	Keyed	4	Free Hanging (In-Line)						4.57 mm	0.18 in	0.2 in	5.08 mm
