HA0231500000G

Active

AMPHENOL ANYTEK

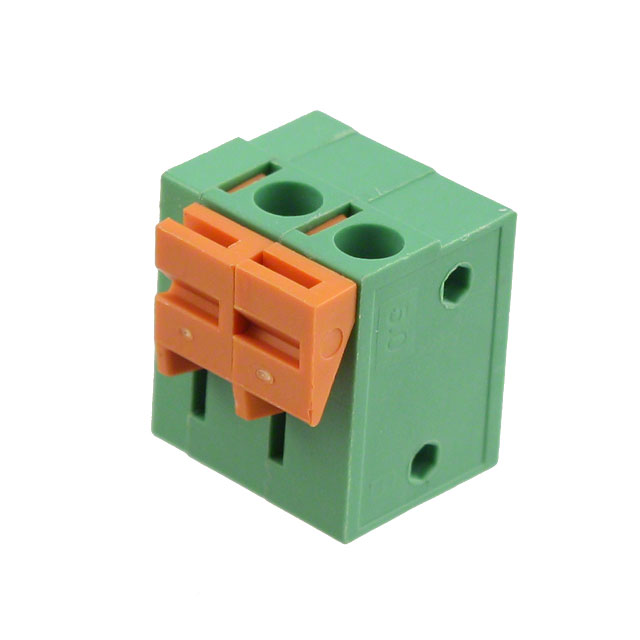

TERM BLK 2POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

HA0231500000G

Active

AMPHENOL ANYTEK

TERM BLK 2POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.66
		10	$ 0.41
		25	$ 0.35
		50	$ 0.32
		100	$ 0.31
		250	$ 0.26
		500	$ 0.25
		2160	$ 0.23

Description

General part information

HA02 Series

2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HA0231500000G	HA02 Series

Clamp Material - Plating	Stainless, Steel	Stainless, Steel
Color	Green	Green
Contact Material - Plating	Copper Alloy - Tin Plated	Copper Alloy - Tin Plated
Contact Material - Plating	-	Brass - Tin Plated
Current	10 A	2 - 10 A
Features	Lever Actuated	Lever Actuated
Housing Material	Thermoplastic	Thermoplastic
Mating Orientation	Horizontal with Board	Vertical with Board, Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	2.54 - 10 mm
Pitch [x]	0.197 in	0.1 - 0.394 in
Positions Per Level	2	2
Voltage	300 V	150 - 300 V
Wire Gauge [Max]	24 AWG	24 - 26 AWG
Wire Gauge [Min]	14 AWG	14 - 20 AWG
Wire Termination	Push-In Spring, Screwless - Leg Spring	Push-In Spring, Screwless - Leg Spring

HA02 Series

TB, WIRE TO BRD, 2WAY, 14AWG ROHS COMPLIANT: YES

Part	Housing Material	Mating Orientation	Number of Levels	Contact Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Wire Termination	Pitch [x]	Pitch [x]	Current	Wire Gauge [Min]	Wire Gauge [Max]	Positions Per Level	Color	Features	Mounting Type	Voltage	Clamp Material - Plating	Contact Material - Plating [custom]
AMPHENOL ANYTEK HA0200500000G	Thermoplastic	Vertical with Board	1	Copper Alloy - Tin Plated	-40 °C	115 °C	Push-In Spring, Screwless - Leg Spring	0.2 in	5.08 mm	10 A	14 AWG	24 AWG	2	Green	Lever Actuated	Through Hole	300 V	Stainless, Steel
AMPHENOL ANYTEK HA0240500000G	Thermoplastic	Vertical with Board	1		-40 °C	115 °C	Push-In Spring, Screwless - Leg Spring	0.394 in	10 mm	10 A	14 AWG	24 AWG	2	Green	Lever Actuated	Through Hole	300 V	Stainless, Steel	Brass - Tin Plated
AMPHENOL ANYTEK HA0261500000G	Thermoplastic	Horizontal with Board	1		-40 °C	115 °C	Push-In Spring, Screwless - Leg Spring	0.295 in	7.5 mm	10 A	14 AWG	24 AWG	2	Green	Lever Actuated	Through Hole	300 V	Stainless, Steel	Brass - Tin Plated
AMPHENOL ANYTEK HA0221500000G	Thermoplastic	Horizontal with Board	1		-40 °C	115 °C	Push-In Spring, Screwless - Leg Spring	0.3 in	7.62 mm	10 A	14 AWG	24 AWG	2	Green	Lever Actuated	Through Hole	300 V	Stainless, Steel	Brass - Tin Plated
AMPHENOL ANYTEK HA0270500000G	Thermoplastic	Vertical with Board	1	Copper Alloy - Tin Plated	-40 °C	115 °C	Push-In Spring, Screwless - Leg Spring	0.15 in	3.81 mm	6 A	16 AWG	26 AWG	2	Green	Lever Actuated	Through Hole	300 V	Stainless, Steel
AMPHENOL ANYTEK HA0271500000G	Thermoplastic	Horizontal with Board	1	Copper Alloy - Tin Plated	-40 °C	115 °C	Push-In Spring, Screwless - Leg Spring	0.15 in	3.81 mm	6 A	16 AWG	26 AWG	2	Green	Lever Actuated	Through Hole	300 V	Stainless, Steel
AMPHENOL ANYTEK HA0250500000G	Thermoplastic	Horizontal with Board	1		-40 °C	115 °C	Push-In Spring, Screwless - Leg Spring	0.1 in	2.54 mm	2 A	20 AWG	26 AWG	2	Green	Lever Actuated	Through Hole	150 V	Stainless, Steel	Brass - Tin Plated
AMPHENOL ANYTEK HA0231500000G	Thermoplastic	Horizontal with Board	1	Copper Alloy - Tin Plated	-40 °C	115 °C	Push-In Spring, Screwless - Leg Spring	0.197 in	5 mm	10 A	14 AWG	24 AWG	2	Green	Lever Actuated	Through Hole	300 V	Stainless, Steel
AMPHENOL ANYTEK HA0220500000G	Thermoplastic	Vertical with Board	1		-40 °C	115 °C	Push-In Spring, Screwless - Leg Spring	0.3 in	7.62 mm	10 A	14 AWG	24 AWG	2	Green	Lever Actuated	Through Hole	300 V	Stainless, Steel	Brass - Tin Plated
