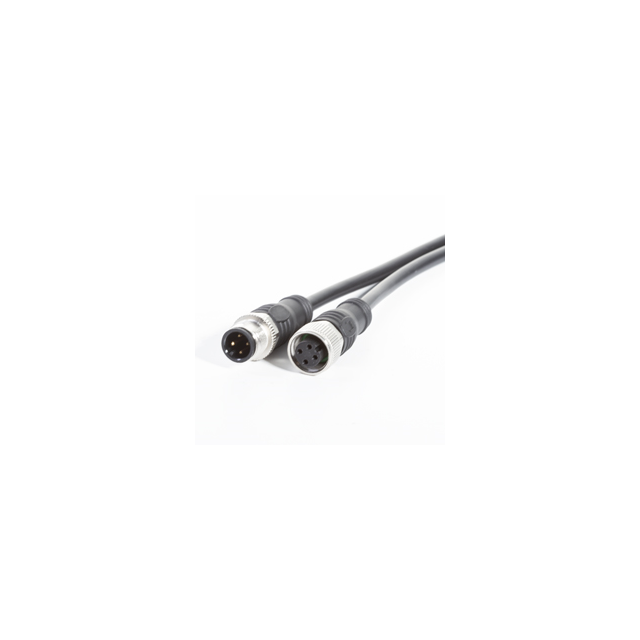

IPM12-A4-FM-3.0
ActiveSure-Seal Legacy
CBL 4POS MALE TO FMALE 9.84'
Deep-Dive with AI
Search across all available documentation for this part.
IPM12-A4-FM-3.0
ActiveSure-Seal Legacy
CBL 4POS MALE TO FMALE 9.84'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPM12-A4-FM-3.0 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 4 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Shell Size - Insert | M12 |
| 2nd Connector Type | Plug |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length [x] | 9.84 ft |
| Length [x] | 3 m |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IPM12-A4-FM-3.0
Cable Assembly 9.84' (3.00m)
Documents
Technical documentation and resources
No documents available
