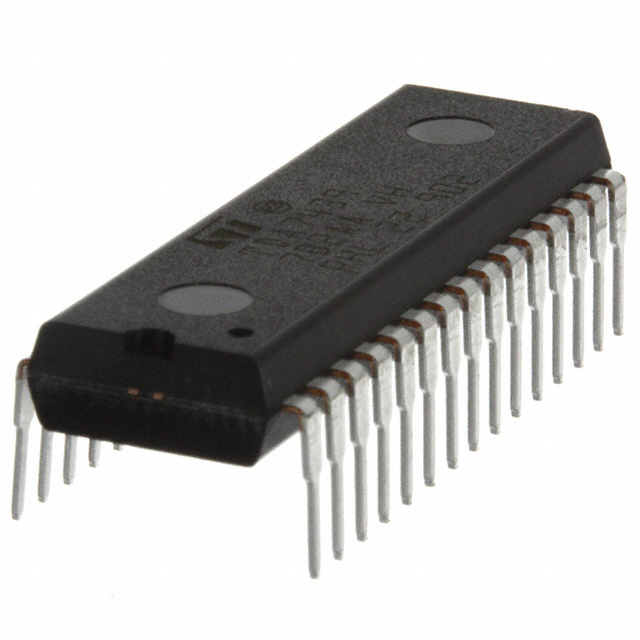

TDA7439
ActiveSTMicroelectronics
IC AUDIO TONE PROCESSOR 30SDIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TDA7439
ActiveSTMicroelectronics
IC AUDIO TONE PROCESSOR 30SDIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TDA7439 | TDA7439 Series |
|---|---|---|
| Applications | Audio | Audio |
| Function | Audio Tone Processor | Audio Tone Processor |
| Grade | Automotive | Automotive |
| Interface | I2C | I2C |
| Mounting Type | Through Hole | Through Hole |
| Number of Channels [custom] | 2 | 2 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 30-SDIP | 28-DIP, 30-SDIP |
| Package / Case | 10.16 mm | 10.16 - 15.24 mm |
| Package / Case | 10.16 mm | 0.6 - 10.16 in |
| Supplier Device Package | 30-SDIP | 28-PDIP, 30-SDIP |
| Voltage - Supply [Max] | 10.2 V | 10.2 V |
| Voltage - Supply [Min] | 7 V | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TDA7439 Series
IC PROCESSOR AUDIO DGTL 28DIP
| Part | Supplier Device Package | Package / Case | Package / Case | Package / Case | Mounting Type | Interface | Operating Temperature [Max] | Operating Temperature [Min] | Function | Applications | Voltage - Supply [Max] | Voltage - Supply [Min] | Number of Channels [custom] | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TDA7439B | 28-PDIP | 28-DIP | 0.6 in | 15.24 mm | Through Hole | |||||||||
STMicroelectronics TDA7439 | 30-SDIP | 30-SDIP | 10.16 mm | 10.16 mm | Through Hole | I2C | 70 °C | 0 °C | Audio Tone Processor | Audio | 10.2 V | 7 V | 2 | Automotive |
Description
General part information
TDA7439 Series
Audio Audio Tone Processor 2 Channel 30-SDIP
Documents
Technical documentation and resources
