Description
General part information

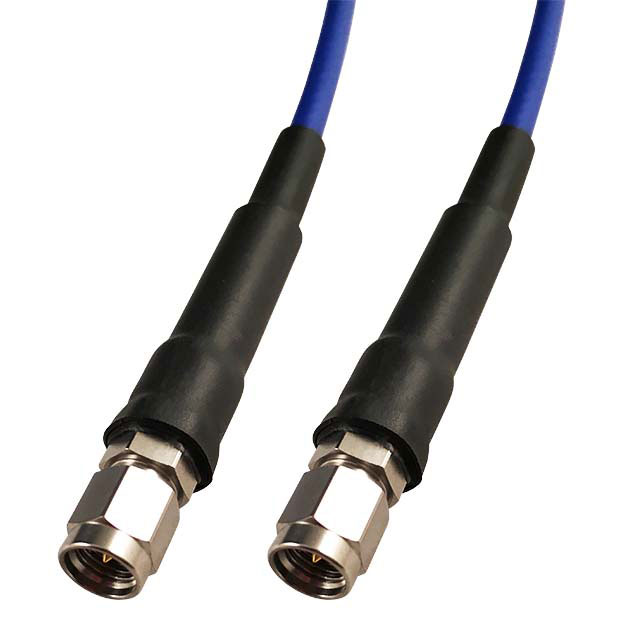

TEA80-S1S1-F15
Cable Assembly Coaxial SMA to SMA 4.95mm OD Coaxial Cable 180.0" (4.6m) 15.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | TEA80-S1S1-F15 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 4.95 mm |
| Cable Type | Coaxial Cable, 4.95mm OD Coaxial Cable, mm OD Coaxial Cable |
| Cable Type Size | 4.95 |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max | 18 GHz |
| Length | 180 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
