936126-1

Active

TE Connectivity AMP Connectors

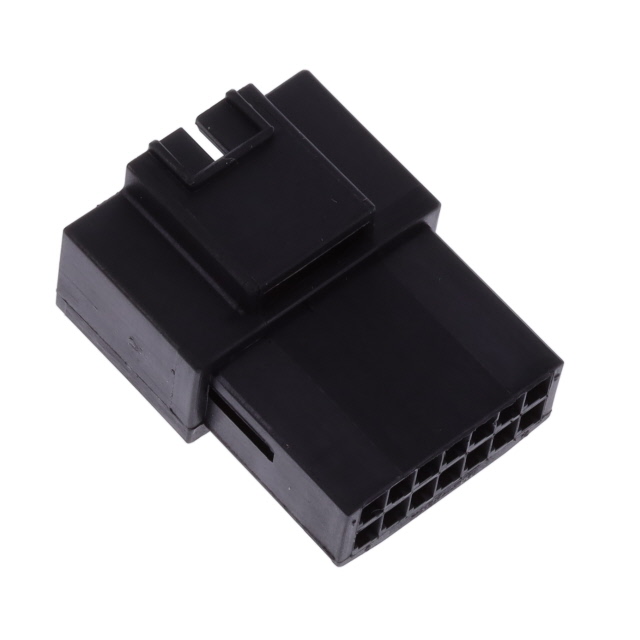

CONN PLUG HSG 14POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 14POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	936126-1

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	3.4 mm
Row Spacing	0.134 in

CONN PLUG HSG 14POS 2.54MM

Part	Mounting Type	Note	Number of Rows	Connector Type	Fastening Type	Number of Positions	Insulation Material	Contact Type	Pitch [x]	Pitch [x]	Color	Contact Termination	Row Spacing	Row Spacing
TE Connectivity AMP Connectors 936126-1	Free Hanging (In-Line)	Contacts Not Included	2	Plug	Latch Holder	14	Polybutylene Terephthalate (PBT), Glass Filled	Male Pin	2.54 mm	0.1 in	Black	Crimp	3.4 mm	0.134 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Rectangular Connectors - Housings Plug Black 0.100" (2.54mm)
