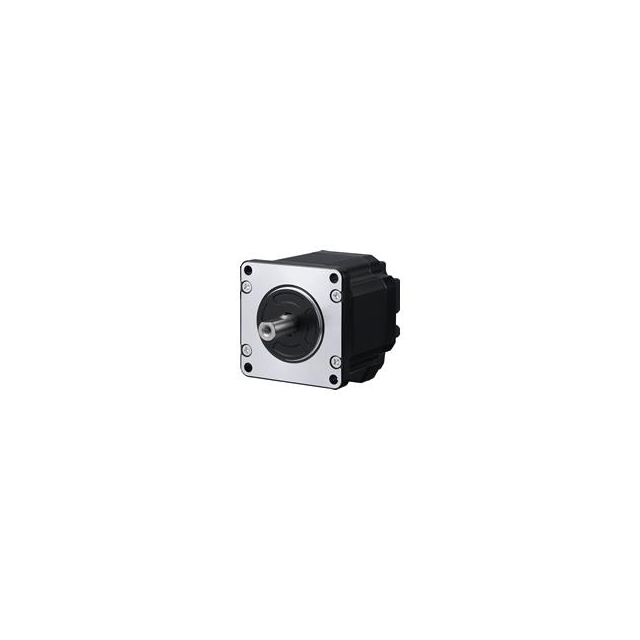

PBM603FXE20

Active

Sanyo Denki SanMotion Products

PB, PB, SQ.60, FOR PB3D, , ,

Search across all available documentation for this part.

Active

Sanyo Denki SanMotion Products

PB, PB, SQ.60, FOR PB3D, , ,

Technical Specifications

Parameters and characteristics for this part

PB, PB, SQ.60, FOR PB3D, , ,

Part	Length - Shaft and Bearing	Length - Shaft and Bearing [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Rotor Inertia	Voltage - Rated [custom]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Hole Spacing	Mounting Hole Spacing	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Coil Type
Sanyo Denki SanMotion Products PBM603FXE20	20.6 mm	0.811 in	2.362 in	2.362 in	60 mm	60 mm	9.62 gcm²	48 VDC	CE, cURus, TUV	-10 °C	40 °C	Hybrid	50 mm	1.969 "	184.1 oz-in	1300 mNm	Bipolar

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Stepper Motor Hybrid Frame Size Step 48VDC

Technical documentation and resources

No documents available
