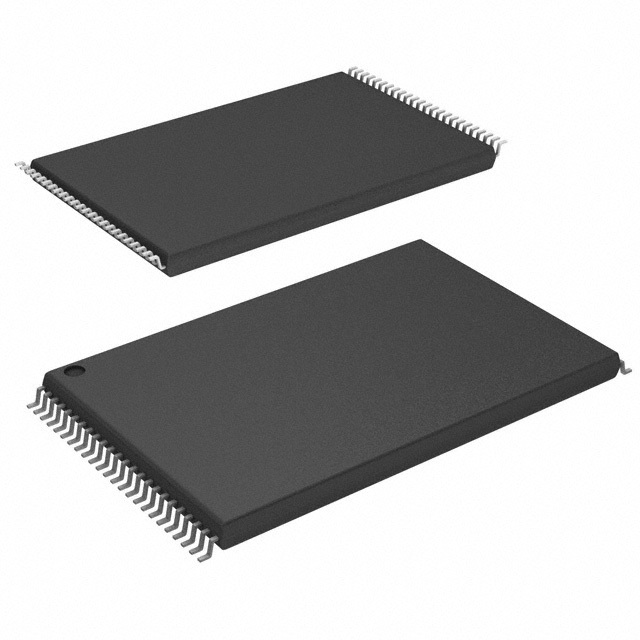

ISO1I813TXUMA1
ActiveTHE ISO1I81XT DIGITAL INPUT PRODUCT FAMILY IS A INTELLIGENT SYSTEM SOLUTION OFFERING ROBUST GALVANIC ISOLATION BETWEEN THE ΜC ON THE "CONTROL SIDE" AND THE 24V FACTORY FLOOR ENVIRONMENT, FREQUENTLY REFERRED TO AS THE "PROCESS SIDE".
Deep-Dive with AI
Search across all available documentation for this part.
ISO1I813TXUMA1
ActiveTHE ISO1I81XT DIGITAL INPUT PRODUCT FAMILY IS A INTELLIGENT SYSTEM SOLUTION OFFERING ROBUST GALVANIC ISOLATION BETWEEN THE ΜC ON THE "CONTROL SIDE" AND THE 24V FACTORY FLOOR ENVIRONMENT, FREQUENTLY REFERRED TO AS THE "PROCESS SIDE".
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ISO1I813TXUMA1 |
|---|---|
| Channel Type | Unidirectional |
| Common Mode Transient Immunity (Min) [Min] | 25 kV/µs |
| Inputs - Side 1/Side 2 [custom] | 8 |
| Inputs - Side 1/Side 2 [custom] | 0 |
| Isolated Power | False |
| Mounting Type | Surface Mount |
| Number of Channels | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 48-TFSOP |
| Package / Case | 0.24 in |
| Package / Case [custom] | 6.1 mm |
| Supplier Device Package | 48-TSSOP |
| Technology | Magnetic Coupling |
| Type | SPI |
| Voltage - Isolation | 500 Vrms |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.85 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.76 | |
| 10 | $ 4.41 | |||
| 25 | $ 4.08 | |||
| 100 | $ 3.70 | |||
| 250 | $ 3.53 | |||
| 500 | $ 3.42 | |||
| 1000 | $ 3.33 | |||
| Digi-Reel® | 1 | $ 5.76 | ||
| 10 | $ 4.41 | |||
| 25 | $ 4.08 | |||
| 100 | $ 3.70 | |||
| 250 | $ 3.53 | |||
| 500 | $ 3.42 | |||
| 1000 | $ 3.33 | |||
| Tape & Reel (TR) | 2000 | $ 3.00 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 8.02 | |
| 10 | $ 6.57 | |||
| 25 | $ 6.20 | |||
| 50 | $ 6.01 | |||
| 100 | $ 5.80 | |||
| 250 | $ 5.61 | |||
| 500 | $ 5.50 | |||
| 1000 | $ 5.40 | |||
Description
General part information
ISO1I813 Series
The ISO1I81xT digital input product family is a intelligent system solution offering robust galvanic isolation between the μC on the "control side" and the 24V factory floor environment, frequently referred to as the "process side".
