PI3TB212ZLEX

Obsolete

Diodes Inc

10.3 GBPS THUNDERBOLT & DISPLAYPORT SWITCH

Search across all available documentation for this part.

Obsolete

Diodes Inc

10.3 GBPS THUNDERBOLT & DISPLAYPORT SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	PI3TB212ZLEX

Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	3:1
Number of Channels [custom]	5
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	0 °C

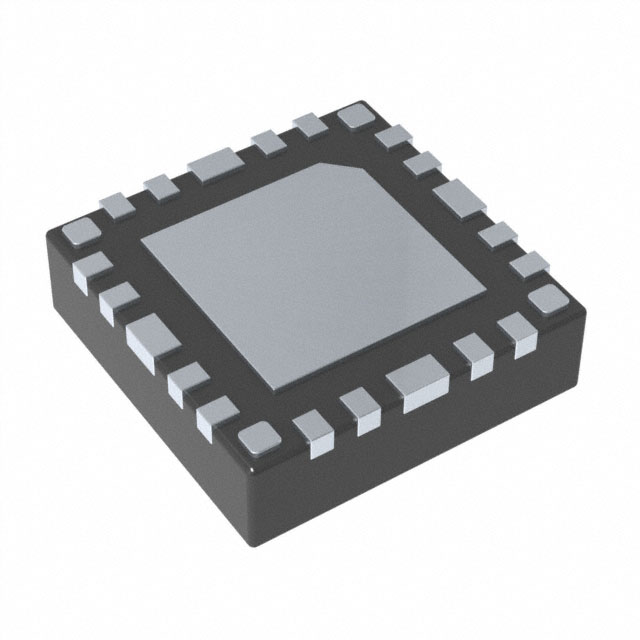

Package / Case	24-VFQFN Exposed Pad
Supplier Device Package	24-TQFN (3x3)
Voltage - Supply, Single (V+) [Max]	3.6 V
Voltage - Supply, Single (V+) [Min]	3 V

10.3 Gbps Thunderbolt & DisplayPort Switch

Part	Number of Channels [custom]	Multiplexer/Demultiplexer Circuit	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Package / Case	Mounting Type
Diodes Inc PI3TB212ZLEX	5	3:1	24-TQFN (3x3)	105 °C	0 °C	3.6 V	3 V	24-VFQFN Exposed Pad	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10.3 Gbps Thunderbolt & DisplayPort Switch

Technical documentation and resources
