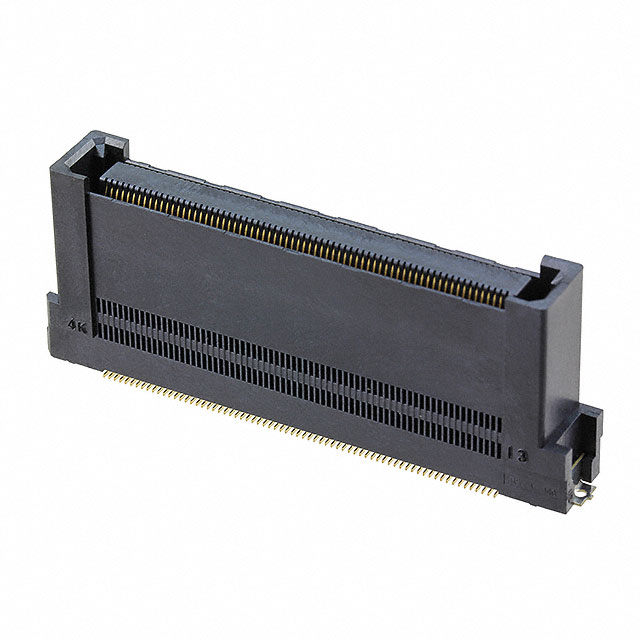

Specification	FX20-140S-0.5SV10

Connector Type	Center Strip Contacts, Receptacle
Features	Solder Retention
Height Above Board	0.72 in
Mated Stacking Height Options	25mm, 30mm
Mounting Type	Surface Mount
Number of Positions	140
Number of Rows	2
Pitch	0.02 in

FX20 Series

Board to Board & Mezzanine Connectors 120P 0.5MM PITCH,STR RECEPT DOUBLE BEAM

Part	Number of Positions	Pitch	Number of Rows	Mounting Type	Connector Type	Features	Height Above Board	Mated Stacking Height Options	Contact Finish Thickness	Contact Finish
Hirose Electric Co Ltd FX20-60S-0.5SV(20)	60	0.02 in	2	Surface Mount	Center Strip Contacts Receptacle	Solder Retention	0.327 in	15mm 20mm	3.94 µin	Gold
Hirose Electric Co Ltd FX20-140P-0.5SV20(10)	140	0.02 in	2	Surface Mount	Header Outer Shroud Contacts	Solder Retention	0.717 in	20mm 30mm
Hirose Electric Co Ltd FX20-120S-0.5SV10	120	0.02 in	2	Surface Mount	Center Strip Contacts Receptacle	Solder Retention	0.72 in	25mm 30mm
Hirose Electric Co Ltd FX20-140P-0.5SV15	140	0.02 in	2	Surface Mount	Header Outer Shroud Contacts	Solder Retention	0.52 in	15mm 25mm	4 µin	Gold
Hirose Electric Co Ltd FX20-40S-0.5SV(20)	40	0.02 in	2	Surface Mount	Center Strip Contacts Receptacle	Solder Retention	0.327 in	15mm 20mm	3.94 µin	Gold
Hirose Electric Co Ltd FX20-100P-0.5SV15(10)	100	0.02 in	2	Surface Mount	Header Outer Shroud Contacts	Solder Retention	0.52 in	15mm 25mm
Hirose Electric Co Ltd FX20-120S-0.5SV	120	0.02 in	2	Surface Mount	Center Strip Contacts Receptacle	Solder Retention	0.327 in	15mm 20mm	4 µin	Gold
Hirose Electric Co Ltd FX20-100P-0.5SV20(10)	100	0.02 in	2	Surface Mount	Header Outer Shroud Contacts	Solder Retention	0.717 in	20mm 30mm
Hirose Electric Co Ltd FX20-60S-0.5SV	60	0.02 in	2	Surface Mount	Center Strip Contacts Receptacle	Solder Retention	0.327 in	15mm 20mm	4 µin	Gold
Hirose Electric Co Ltd FX20-120S-0.5SH	120	0.02 in	2	Right Angle Surface Mount	Center Strip Contacts Receptacle	Solder Retention	0.281 in
