628-3WK3224-2N1

Active

EDAC Inc.

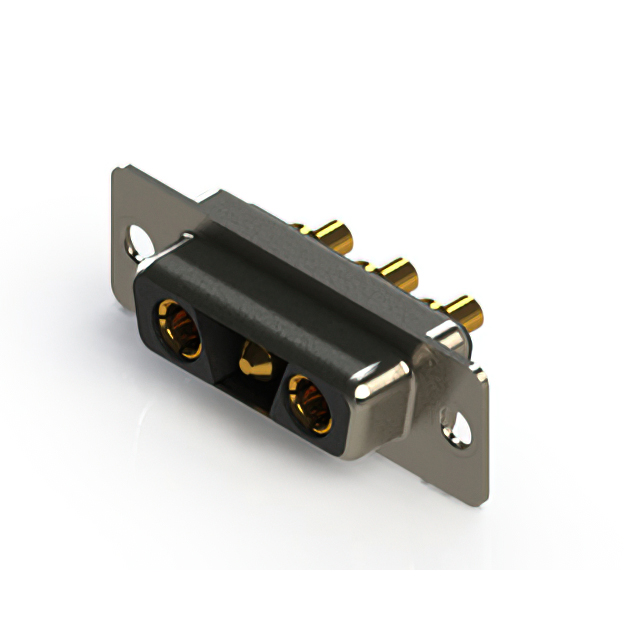

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DA-3WK3, RECEPTACLE, 3 CONTACTS, 3 POWER, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

628-3WK3224-2N1

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DA-3WK3, RECEPTACLE, 3 CONTACTS, 3 POWER, SOLDER

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-3WK3224-2N1

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	20 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 3WK3
Termination	Solder
Voltage Rating	125 VDC

628-3WK Series

...

Part	Voltage Rating	Connector Style	Mounting Type	Current Rating (Amps)	Features	Material Flammability Rating	Termination	Flange Feature	Number of Rows	Connector Type	Number of Positions	Color	Dielectric Material	Shell Size, Connector Layout	Contact Finish	Contact Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [custom]	Flange Feature [custom]	Shell Material, Finish
EDAC Inc. 628-3WK3224-3T3	125 VDC	Combo D-Sub	Through Hole	30 A	Shielded	UL94 V-0	Solder	4-40 Board Side	1	Female Sockets Male Pins Receptacle	3	Black	Polyester Thermoplastic	2 (DA A) - 3WK3	Gold	Copper Alloy	Signal and Power	-55 °C	125 °C	Flash
EDAC Inc. 628-3WK3624-3TA	125 VDC	Combo D-Sub	Through Hole	30 A	Shielded	UL94 V-0	Solder	Board Side (M3)	1	Female Sockets Male Pins Receptacle	3	Black	Polyester Thermoplastic	2 (DA A) - 3WK3	Gold	Copper Alloy	Signal and Power	-55 °C	125 °C		0.76 Ám	30 Áin
EDAC Inc. 628-3WK3224-4T6	125 VDC	Combo D-Sub	Through Hole	40 A	Board Lock Shielded	UL94 V-0	Solder	4-40	1	Female Sockets Male Pins Receptacle	3	Black	Polyester Thermoplastic	2 (DA A) - 3WK3	Gold	Copper Alloy	Signal and Power	-55 °C	125 °C	Flash
EDAC Inc. 628-3WK3624-5NC	125 VDC	Combo D-Sub	Through Hole		Shielded	UL94 V-0	Solder		1	Female Sockets Male Pins Receptacle	3	Black	Polyester Thermoplastic	2 (DA A) - 3WK3	Gold	Copper Alloy	Coax Signal	-55 °C	125 °C		0.76 Ám	30 Áin	M3	M3	Nickel Plated Steel
EDAC Inc. 628-3WK3224-2N1	125 VDC	Combo D-Sub	Through Hole	20 A	Shielded	UL94 V-0	Solder	Housing/Shell (Unthreaded)	1	Female Sockets Male Pins Receptacle	3	Black	Polyester Thermoplastic	2 (DA A) - 3WK3	Gold	Copper Alloy	Signal and Power	-55 °C	125 °C	Flash					Nickel Plated Steel
EDAC Inc. 628-3WK3624-5TD	125 VDC	Combo D-Sub	Through Hole		Board Lock Shielded	UL94 V-0	Solder	Board Side (M3)	1	Female Sockets Male Pins Receptacle	3	Black	Polyester Thermoplastic	2 (DA A) - 3WK3	Gold	Copper Alloy	Coax Signal	-55 °C	125 °C		0.76 Ám	30 Áin
EDAC Inc. 628-3WK3624-4TE	125 VDC	Combo D-Sub	Through Hole	40 A	Board Lock Shielded	UL94 V-0	Solder	M3	1	Female Sockets Male Pins Receptacle	3	Black	Polyester Thermoplastic	2 (DA A) - 3WK3	Gold	Copper Alloy	Signal and Power	-55 °C	125 °C		0.76 Ám	30 Áin
EDAC Inc. 628-3WK3224-2TD	125 VDC	Combo D-Sub	Through Hole	20 A	Board Lock Shielded	UL94 V-0	Solder	Board Side (M3)	1	Female Sockets Male Pins Receptacle	3	Black	Polyester Thermoplastic	2 (DA A) - 3WK3	Gold	Copper Alloy	Signal and Power	-55 °C	125 °C	Flash
EDAC Inc. 628-3WK3224-1NE	125 VDC	Combo D-Sub	Through Hole	10 A	Board Lock Shielded	UL94 V-0	Solder	M3	1	Female Sockets Male Pins Receptacle	3	Black	Polyester Thermoplastic	2 (DA A) - 3WK3	Gold	Copper Alloy	Signal and Power	-55 °C	125 °C	Flash					Nickel Plated Steel
EDAC Inc. 628-3WK3224-7N5	125 VDC	Combo D-Sub	Through Hole		Board Lock Shielded	UL94 V-0	Solder	4-40 Board Side	1	Female Sockets Male Pins Receptacle	3	Black	Polyester Thermoplastic	2 (DA A) - 3WK3	Gold	Copper Alloy	Coax Signal	-55 °C	125 °C	Flash					Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 5.16
Newark	Each	100	$ 5.38
		250	$ 5.25
		500	$ 5.06

Description

General part information

628-3WK Series

3 (Power) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector
