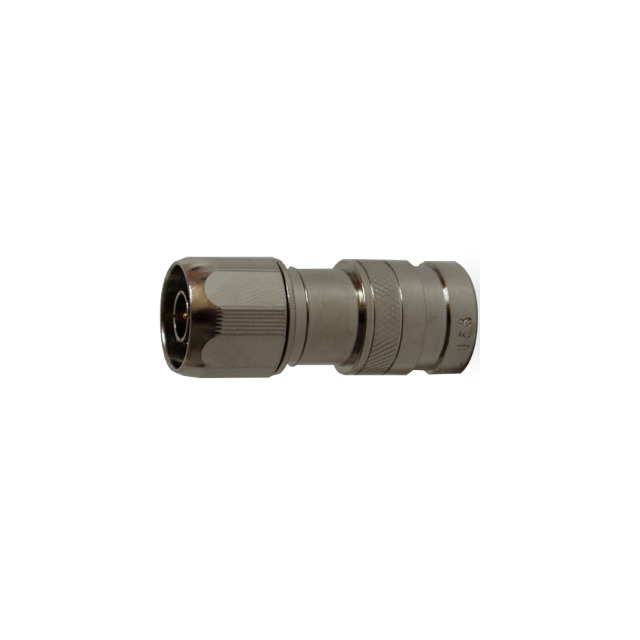

COMP-NM-400

Active

RF Industries

N MALE COMPRESSION; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

N MALE COMPRESSION; 50 OHMS

Technical Specifications

Parameters and characteristics commom to parts in this series

N MALE COMPRESSION; 50 OHMS

Part	Body Finish	Shield Termination	Impedance	Connector Type	Frequency - Max [Max]	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Center Contact Material	Ingress Protection	Center Contact Plating	Mounting Type	Connector Style	Number of Ports	Dielectric Material	Body Material
RF Industries COMP-NM-400PL	White Bronze	Compression	50 Ohms	Male Pin, Plug	7 GHz	Silver	85 °C	-55 °C	LMR-400 Plenum	Brass	IP68 - Dust Tight, Waterproof	Gold	Free Hanging (In-Line)	N Type	1	Polyetherimide (PEI)	Brass
RF Industries COMP-NM-400	White Bronze	Compression	50 Ohms	Male Pin, Plug	7 GHz	Silver	85 °C	-55 °C	LMR-400	Brass	IP68 - Dust Tight, Waterproof	Gold	Free Hanging (In-Line)	N Type	1	Polyetherimide (PEI)	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line)

Technical documentation and resources

No documents available
