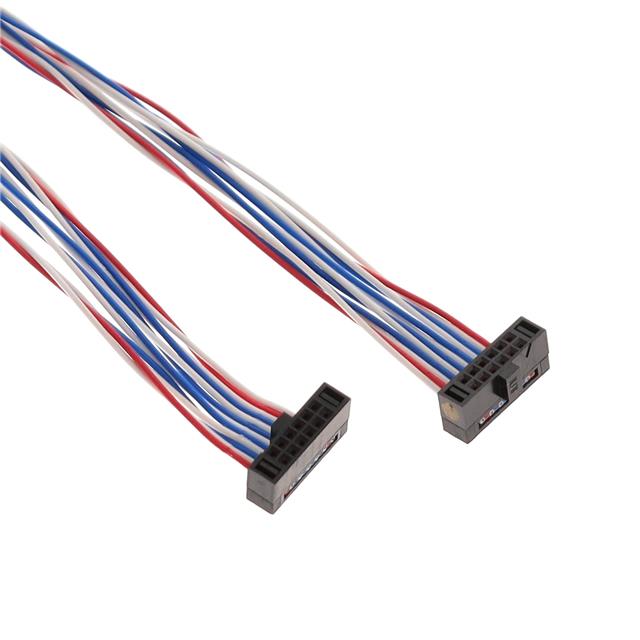

FFTP-06-D-08.77-01-N

Active

Samtec Inc.

RIBBON CABLES / IDC CABLES LOW PROFILE TWISTED PAIR RIBBON CABLE ASSEMBLY, 0.050" PITCH

Search across all available documentation for this part.

Active

Samtec Inc.

RIBBON CABLES / IDC CABLES LOW PROFILE TWISTED PAIR RIBBON CABLE ASSEMBLY, 0.050" PITCH

Technical Specifications

Parameters and characteristics for this part

Ribbon Cables / IDC Cables Low profile twisted pair ribbon cable assembly, 0.050" pitch

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Features	Pitch - Connector	Pitch - Connector	Number of Positions	Contact Finish	Cable Termination	Number of Rows	Pitch - Cable [x]	Pitch - Cable	Shielding	Color	Length	Length	Length	Length [x]	Length [x]
Samtec Inc. FFTP-15-D-03.85-01-F-N	10 Áin	0.25 Ám	Socket to Socket	Polarizing Key	0.05 in	1.27 mm	30	Gold	IDC	2	0.025 in	0.64 mm	Unshielded	Multiple Twisted Pair (Round)
Samtec Inc. FFTP-06-D-03.85-01-N	10 Áin	0.25 Ám	Socket to Socket	Polarizing Key	0.05 in	1.27 mm	12	Gold	IDC	2	0.025 in	0.64 mm	Unshielded	Multiple Twisted Pair (Round)	3.85 "	0.321 '	97.79 mm
Samtec Inc. FFTP-13-D-18.00-01-F-N-R	10 Áin	0.25 Ám	Socket to Socket Reversed	Polarizing Key	0.05 in	1.27 mm	26	Gold	IDC	2	0.025 in	0.64 mm	Unshielded	Multiple Twisted Pair (Round)				457.2 mm	1.5 ft
Samtec Inc. FFTP-13-D-18.00-01-N	10 Áin	0.25 Ám	Socket to Socket	Polarizing Key	0.05 in	1.27 mm	26	Gold	IDC	2	0.025 in	0.64 mm	Unshielded	Multiple Twisted Pair (Round)				457.2 mm	1.5 ft
Samtec Inc. FFTP-13-D-03.85-01-N-R	10 Áin	0.25 Ám	Socket to Socket Reversed	Polarizing Key	0.05 in	1.27 mm	26	Gold	IDC	2	0.025 in	0.64 mm	Unshielded	Multiple Twisted Pair (Round)	3.85 "	0.321 '	97.79 mm
Samtec Inc. FFTP-06-D-08.77-01-N	10 Áin	0.25 Ám	Socket to Socket	Polarizing Key	0.05 in	1.27 mm	12	Gold	IDC	2	0.025 in	0.64 mm	Unshielded	Multiple Twisted Pair (Round)	8.77 in	0.731 ft	222.76 mm
Samtec Inc. FFTP-13-D-08.77-01-N-R	10 Áin	0.25 Ám	Socket to Socket Reversed	Polarizing Key	0.05 in	1.27 mm	26	Gold	IDC	2	0.025 in	0.64 mm	Unshielded	Multiple Twisted Pair (Round)	8.77 in	0.731 ft	222.76 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ribbon Cables / IDC Cables Low profile twisted pair ribbon cable assembly, 0.050" pitch
