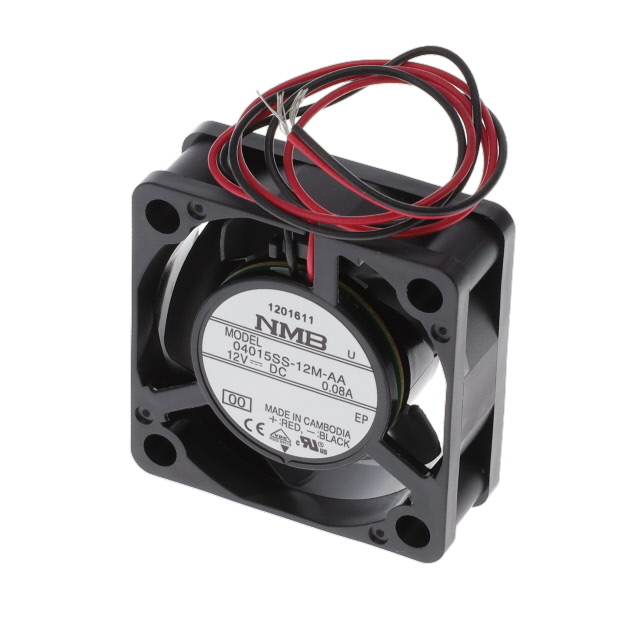

04015SS-12M-AA-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 40 MM, 15 MM, SLEEVE BEARING, 6.4 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

04015SS-12M-AA-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 40 MM, 15 MM, SLEEVE BEARING, 6.4 CFM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.44
		10	$ 6.22
		25	$ 6.04
		50	$ 5.68
		100	$ 5.11
		360	$ 5.03
		720	$ 4.71
Newark	Each	1	$ 7.23
		1080	$ 6.50
		1980	$ 6.40
		2520	$ 6.26
		5040	$ 6.18
		10080	$ 5.93

Description

General part information

04015SS Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Sleeve 6.4 CFM (0.179m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Specification	04015SS-12M-AA-00	04015SS Series

Air Flow	0.179 mł/min	0.16 - 0.207 mł/min
Air Flow	6.4 CFM	5.7 - 7.4 CFM
Bearing Type	Sleeve	Sleeve
Current Rating (Amps)	50 mA	0.25 - 60 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Auto Restart	Locked Rotor Sensor, Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Aluminum	Plastic, Aluminum
Noise	29 dB(A)	26 - 32 dB(A)
Operating Temperature [Max]	70 °C	60 - 70 °C
Operating Temperature [Max]	70 °C	60 - 70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	600 mW	0.48 - 720 W
RPM	7300 RPM	6300 - 8300 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	40 mm	40 mm
Size / Dimension [z]	40 mm	40 mm
Static Pressure	0.21 in H2O	0.21 - 0.27 in H2O
Static Pressure	52.3 Pa	52.3 - 67.3 Pa
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	12 - 24 VDC
Voltage Range [Max]	13.8 VDC	13.8 - 27.6 VDC
Voltage Range [Min]	6 VDC	6 - 10 VDC
Weight	-	23.13 g
Weight	-	0.051 lb
Width [x]	15 mm	15 mm

Part

Width [x]

Current Rating (Amps)

Voltage - Rated

RPM

Termination

Size / Dimension [z]

Size / Dimension

Size / Dimension [x]

Lifetime @ Temp.

Features

Fan Type

Voltage Range [Min]

Voltage Range [Max]

Bearing Type

Material - Blade

Noise

Material - Frame

Static Pressure

Operating Temperature [Max]

Operating Temperature [Min]

Air Flow

Power (Watts)

Weight

NMB TECHNOLOGIES

04015SS-24M-AL-00

15 mm

40 mA

24 VDC

7300 RPM

3 Wire Leads

40 mm

Square

40 mm

40000 Hrs

Auto Restart, Locked Rotor Sensor

Tubeaxial

10 VDC

25.2 VDC

Sleeve

Plastic

29 dB(A)

Plastic

0.21 in H2O

52.3 Pa

70 °C

-10 °C

0.179 mł/min

6.4 CFM

NMB TECHNOLOGIES

04015SS-12L-AA-00

15 mm

40 mA

12 VDC

6300 RPM

2 Wire Leads

40 mm

Square

40 mm

40000 Hrs

Auto Restart

Tubeaxial

6 VDC

13.8 VDC

Sleeve

Plastic

26 dB

Aluminum

70 °C

-10 °C

0.16 m³/min

5.7 CFM

0.48 W

NMB TECHNOLOGIES

04015SS-12M-AL-00

15 mm

50 mA

12 VDC

7300 RPM

3 Wire Leads

40 mm

Square

40 mm

40000 Hrs

Auto Restart, Locked Rotor Sensor

Tubeaxial

6 VDC

13.8 VDC

Sleeve

Plastic

29 dB(A)

Plastic

0.21 in H2O

52.3 Pa

70 °C

-10 °C

0.179 mł/min

6.4 CFM

600 mW

NMB TECHNOLOGIES

04015SS-12L-AT-00

15 mm

40 mA

12 VDC

6300 RPM

3 Wire Leads

40 mm

Square

40 mm

40000 Hrs

Auto Restart, Speed Sensor (Tach)

Tubeaxial

6 VDC

13.8 VDC

Sleeve

Plastic

26 dB

Aluminum

70 °C

-10 °C

0.16 m³/min

5.7 CFM

0.48 W

NMB TECHNOLOGIES

04015SS-12L-AL-00

15 mm

40 mA

12 VDC

6300 RPM

3 Wire Leads

40 mm

Square

40 mm

40000 Hrs

Auto Restart, Locked Rotor Sensor

Tubeaxial

6 VDC

13.8 VDC

Sleeve

Plastic

26 dB

Plastic

70 °C

-10 °C

0.16 m³/min

5.7 CFM

0.48 W

NMB TECHNOLOGIES

04015SS-24N-AA-00

15 mm

50 mA

24 VDC

8300 RPM

2 Wire Leads

40 mm

Square

40 mm

40000 Hrs

Auto Restart

Tubeaxial

10 VDC

25.2 VDC

Sleeve

Plastic

32 dB

Aluminum

0.27 in H2O

67.3 Pa

70 °C

-10 °C

0.207 mł/min

7.4 CFM

1.2 W

NMB TECHNOLOGIES

04015SS-24N-AT-00

15 mm

50 mA

24 VDC

8300 RPM

3 Wire Leads

40 mm

Square

40 mm

Speed Sensor (Tach)

Tubeaxial

10 VDC

25.2 VDC

Sleeve

Plastic

32 dB

Plastic

0.27 in H2O

67.3 Pa

60 °C

-10 °C

0.207 mł/min

7.4 CFM

1.2 W

23.13 g

0.051 lb

NMB TECHNOLOGIES

04015SS-12N-AA-00

15 mm

60 mA

12 VDC

8300 RPM

2 Wire Leads

40 mm

Square

40 mm

40000 Hrs

Auto Restart

Tubeaxial

6 VDC

13.8 VDC

Sleeve

Plastic

32 dB

Aluminum

0.27 in H2O

67.3 Pa

70 °C

-10 °C

0.207 mł/min

7.4 CFM

720 mW

NMB TECHNOLOGIES

04015SS-24M-AA-00

15 mm

40 mA

24 VDC

7300 RPM

2 Wire Leads

40 mm

Square

40 mm

40000 Hrs

Auto Restart

Tubeaxial

10 VDC

25.2 VDC

Sleeve

Plastic

29 dB(A)

Aluminum

0.21 in H2O

52.3 Pa

70 °C

-10 °C

0.179 mł/min

6.4 CFM

NMB TECHNOLOGIES

04015SS-12M-AT-00

15 mm

50 mA

12 VDC

7300 RPM

3 Wire Leads

40 mm

Square

40 mm

40000 Hrs

Auto Restart, Speed Sensor (Tach)

Tubeaxial

6 VDC

13.8 VDC

Sleeve

Plastic

29 dB(A)

Aluminum

0.21 in H2O

52.3 Pa

70 °C

-10 °C

0.179 mł/min

6.4 CFM

600 mW

Part	Width [x]	Current Rating (Amps)	Voltage - Rated	RPM	Termination	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Lifetime @ Temp.	Features	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Material - Blade	Noise	Material - Frame	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Power (Watts)	Weight	Weight
NMB TECHNOLOGIES 04015SS-24M-AL-00	15 mm	40 mA	24 VDC	7300 RPM	3 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart, Locked Rotor Sensor	Tubeaxial	10 VDC	25.2 VDC	Sleeve	Plastic	29 dB(A)	Plastic	0.21 in H2O	52.3 Pa	70 °C	70 °C	-10 °C	-10 °C	0.179 mł/min	6.4 CFM
NMB TECHNOLOGIES 04015SS-12L-AA-00	15 mm	40 mA	12 VDC	6300 RPM	2 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart	Tubeaxial	6 VDC	13.8 VDC	Sleeve	Plastic	26 dB	Aluminum			70 °C	70 °C	-10 °C	-10 °C	0.16 m³/min	5.7 CFM	0.48 W
NMB TECHNOLOGIES 04015SS-12M-AL-00	15 mm	50 mA	12 VDC	7300 RPM	3 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart, Locked Rotor Sensor	Tubeaxial	6 VDC	13.8 VDC	Sleeve	Plastic	29 dB(A)	Plastic	0.21 in H2O	52.3 Pa	70 °C	70 °C	-10 °C	-10 °C	0.179 mł/min	6.4 CFM	600 mW
NMB TECHNOLOGIES 04015SS-12L-AT-00	15 mm	40 mA	12 VDC	6300 RPM	3 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart, Speed Sensor (Tach)	Tubeaxial	6 VDC	13.8 VDC	Sleeve	Plastic	26 dB	Aluminum			70 °C	70 °C	-10 °C	-10 °C	0.16 m³/min	5.7 CFM	0.48 W
NMB TECHNOLOGIES 04015SS-12L-AL-00	15 mm	40 mA	12 VDC	6300 RPM	3 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart, Locked Rotor Sensor	Tubeaxial	6 VDC	13.8 VDC	Sleeve	Plastic	26 dB	Plastic			70 °C	70 °C	-10 °C	-10 °C	0.16 m³/min	5.7 CFM	0.48 W
NMB TECHNOLOGIES 04015SS-24N-AA-00	15 mm	50 mA	24 VDC	8300 RPM	2 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart	Tubeaxial	10 VDC	25.2 VDC	Sleeve	Plastic	32 dB	Aluminum	0.27 in H2O	67.3 Pa	70 °C	70 °C	-10 °C	-10 °C	0.207 mł/min	7.4 CFM	1.2 W
NMB TECHNOLOGIES 04015SS-24N-AT-00	15 mm	50 mA	24 VDC	8300 RPM	3 Wire Leads	40 mm	Square	40 mm		Speed Sensor (Tach)	Tubeaxial	10 VDC	25.2 VDC	Sleeve	Plastic	32 dB	Plastic	0.27 in H2O	67.3 Pa	60 °C	60 °C	-10 °C	-10 °C	0.207 mł/min	7.4 CFM	1.2 W	23.13 g	0.051 lb
NMB TECHNOLOGIES 04015SS-12N-AA-00	15 mm	60 mA	12 VDC	8300 RPM	2 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart	Tubeaxial	6 VDC	13.8 VDC	Sleeve	Plastic	32 dB	Aluminum	0.27 in H2O	67.3 Pa	70 °C	70 °C	-10 °C	-10 °C	0.207 mł/min	7.4 CFM	720 mW
NMB TECHNOLOGIES 04015SS-24M-AA-00	15 mm	40 mA	24 VDC	7300 RPM	2 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart	Tubeaxial	10 VDC	25.2 VDC	Sleeve	Plastic	29 dB(A)	Aluminum	0.21 in H2O	52.3 Pa	70 °C	70 °C	-10 °C	-10 °C	0.179 mł/min	6.4 CFM
NMB TECHNOLOGIES 04015SS-12M-AT-00	15 mm	50 mA	12 VDC	7300 RPM	3 Wire Leads	40 mm	Square	40 mm	40000 Hrs	Auto Restart, Speed Sensor (Tach)	Tubeaxial	6 VDC	13.8 VDC	Sleeve	Plastic	29 dB(A)	Aluminum	0.21 in H2O	52.3 Pa	70 °C	70 °C	-10 °C	-10 °C	0.179 mł/min	6.4 CFM	600 mW
