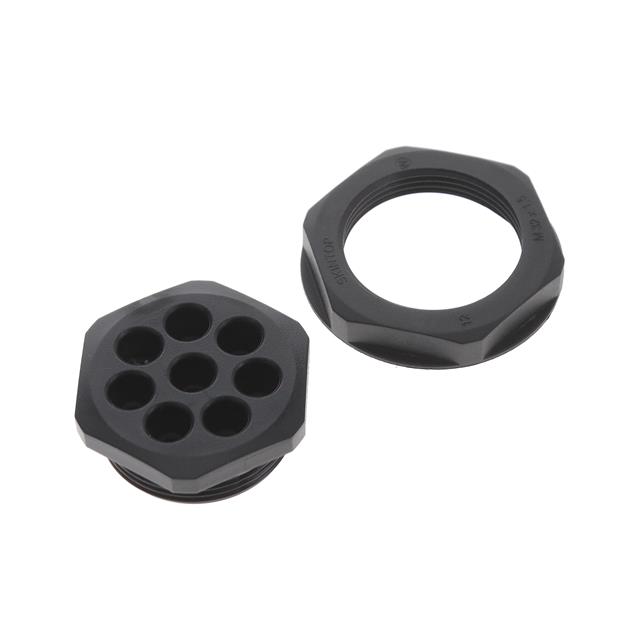

CABLE GLAND, M32 X 1.5, 2 MM, 6 MM, PC (POLYCARBONATE), BLACK, IP66, IP67, IP68
Deep-Dive with AI
Search across all available documentation for this part.
52220146
ActiveLAPP
CABLE GLAND, M32 X 1.5, 2 MM, 6 MM, PC (POLYCARBONATE), BLACK, IP66, IP67, IP68
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 52220146 | 52220 Series |
|---|---|---|
| Accessory Type | - | Cable Insert, Brush |
| Bushing, Grommet Type | Bushing | Bushing |
| Color | Black | Black |
| Features | - | 21 - 23 Cable Openings |
| Features | - | IP68 - Dust Tight, Waterproof, IP66 - Dust Tight, Water Resistant, Waterproof, IP68 - Dust Tight |
| For Use With/Related Products | 8 Cable Openings | 4 Cable Openings, 12 Cable Openings, 8 Cable Openings, Wires, Cable, 18 Cable Openings, 30 Cable Openings |
| Material | Polycarbonate (PC) | Polycarbonate (PC), Glass Filled, Polyamide (PA), Nylon, Aluminum |
| Material Flammability Rating | UL94 V-2 | UL94 V-2 |
52220 Series
CABLE GLAND, M25 X 1.5, 2 MM, 6 MM, PC (POLYCARBONATE), BLACK, IP66, IP67, IP68
| Part | For Use With/Related Products | Color | Material Flammability Rating | Material | Bushing, Grommet Type | Accessory Type | Features | Features |
|---|---|---|---|---|---|---|---|---|
LAPP 52220140 | 4 Cable Openings | Black | UL94 V-2 | Polycarbonate (PC) | Bushing | |||
LAPP 52220110 | 12 Cable Openings | Black | UL94 V-2 | Polycarbonate (PC) | Bushing | |||
LAPP 52220146 | 8 Cable Openings | Black | UL94 V-2 | Polycarbonate (PC) | Bushing | |||
LAPP 52220057 | Glass Filled, Nylon, Polyamide (PA) | Cable Insert | 23 Cable Openings | |||||
LAPP 52220056 | Glass Filled, Nylon, Polyamide (PA) | Cable Insert | 21 Cable Openings | |||||
LAPP 52220065 | Cable, Wires | Black | Polycarbonate (PC) | Bushing | 22 | IP68 - Dust Tight, Waterproof | ||
LAPP 52220111 | 18 Cable Openings | Black | UL94 V-2 | Polycarbonate (PC) | Bushing | |||
LAPP 52220053 | Cable, Wires | Black | Polycarbonate (PC) | Bushing | 23 Cable Openings | IP66 - Dust Tight, Water Resistant | ||
LAPP 52220112 | 30 Cable Openings | Black | UL94 V-2 | Polycarbonate (PC) | Bushing | |||
LAPP 52220089 | Aluminum | Brush |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
52220 Series
Bushing Black
