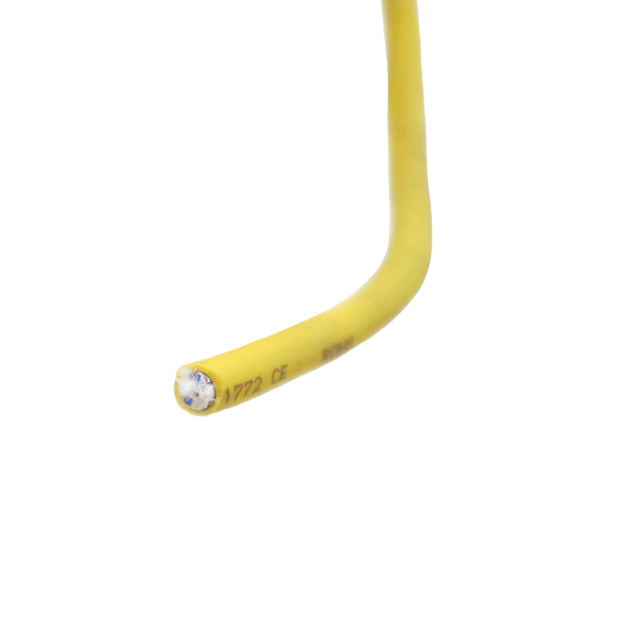

1772 YL005

Active

ALPHA WIRE

CABLE 4COND 25AWG YLW SHLD 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsComm, Control, Industrial Cable Catalog

1772 YL005

Active

ALPHA WIRE

CABLE 4COND 25AWG YLW SHLD 100'

Deep-Dive with AI

DocumentsComm, Control, Industrial Cable Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1772 YL005	1772 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand [custom]	40	40
Conductor Strand [x]	40	40
Jacket (Insulation) Diameter [diameter]	0.239 in	0.239 in
Jacket (Insulation) Diameter [diameter]	6.07 mm	6.07 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.118 mm	1.118 mm
Jacket (Insulation) Thickness	0.044 in	0.044 in
Jacket Color	Yellow	Slate, Yellow, Brown, Black
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	4	4
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	95 %	95 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	25 AWG	25 AWG

1772 Series

CABLE 4CON 25AWG SLATE SHLD 100'

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Shield Type	Conductor Insulation	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Shield Coverage	Shield Material	Voltage	Wire Gauge	Length [x]	Length [x]	Usage	Conductor Strand [custom]	Conductor Strand [x]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket (Insulation) Material	Length	Length
ALPHA WIRE 1772 SL005	1.118 mm	0.044 in	Slate	Braid	Poly-Vinyl Chloride (PVC)	4	0.239 in	6.07 mm	Multi-Conductor	95 %	Copper, Tinned	600 V	25 AWG	30.5 m	100 ft	Communication, Control	40	40	-20 C	60 °C	Copper, Bare	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 1772 YL005	1.118 mm	0.044 in	Yellow	Braid	Poly-Vinyl Chloride (PVC)	4	0.239 in	6.07 mm	Multi-Conductor	95 %	Copper, Tinned	600 V	25 AWG	30.5 m	100 ft	Communication, Control	40	40	-20 C	60 °C	Copper, Bare	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 1772 BR001	1.118 mm	0.044 in	Brown	Braid	Poly-Vinyl Chloride (PVC)	4	0.239 in	6.07 mm	Multi-Conductor	95 %	Copper, Tinned	600 V	25 AWG			Communication, Control	40	40	-20 C	60 °C	Copper, Bare	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
ALPHA WIRE 1772 BK001	1.118 mm	0.044 in	Black	Braid	Poly-Vinyl Chloride (PVC)	4	0.239 in	6.07 mm	Multi-Conductor	95 %	Copper, Tinned	600 V	25 AWG			Communication, Control	40	40	-20 C	60 °C	Copper, Bare	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m
ALPHA WIRE 1772 SL001	1.118 mm	0.044 in	Slate	Braid	Poly-Vinyl Chloride (PVC)	4	0.239 in	6.07 mm	Multi-Conductor	95 %	Copper, Tinned	600 V	25 AWG			Communication, Control	40	40	-20 C	60 °C	Copper, Bare	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 343.67
		3	$ 319.65
		5	$ 302.85

Description

General part information

1772 Series

4 Conductor Multi-Conductor Cable Yellow 25 AWG Braid 100.0' (30.5m)
