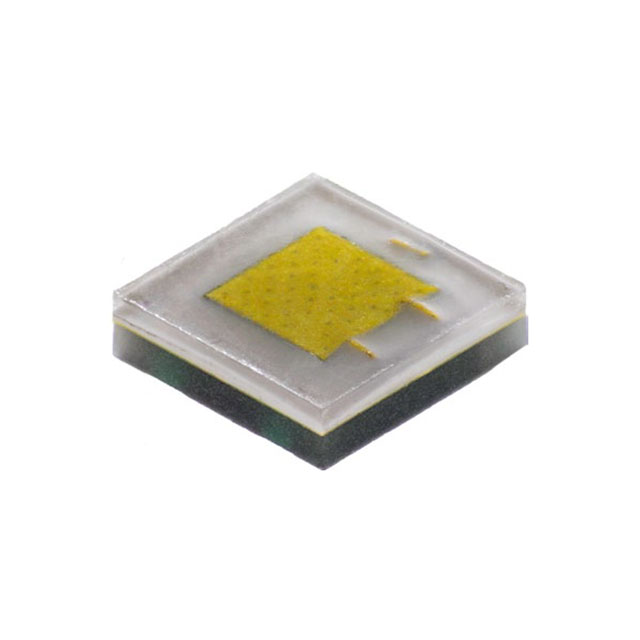

XPLAWT-H0-0000-000BU5053

Active

Cree LED

XLAMP XP-L LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPLAWT-H0-0000-000BU5053

Active

Cree LED

XLAMP XP-L LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 3.12

Description

General part information

XPLAWT Series

The XLamp® XP-L High Density (HD) LED is the highest performing discrete in Cree’s High Density (HD) class of LEDs, delivering the next generation of lumen output and efficacy in the compact 3.45 mm x 3.45 mm XP footprint. Cree’s HD LEDs, optimized toAvailable in white, 70-CRI white, 80-CRI white, 85 CRI white and 90-CRI white • ANSI-compatible chromaticity bins • Binned at 85 °C • Maximum drive current: 3000 mA • Low thermal resistance: 2.2 °C/W • Wide viewing angle: 125° (XP-L High Density), 115° (X

Documents

Technical documentation and resources

Datasheet

Specification	XPLAWT-H0-0000-000BU5053	XPLAWT Series

CCT (K)	6000 K	2700 - 6500 K
Color	Cool, White	Neutral, White, Warm, Cool
CRI (Color Rendering Index)	70	70 - 90
Current - Max [Max]	3 A	3 A
Current - Test	1.05 A	1.05 A
Flux @ 25°C, Current - Test	-	334 - 491 lm
Flux @ 85°C, Current - Test	370 lm	250 - 490 lm
Flux @ 85°C, Current - Test	-	380lm ~ 400lm
Flux @ 85°C, Current - Test [Max]	380 lm	240 - 440 lm
Flux @ 85°C, Current - Test [Min]	360 lm	220 - 420 lm
Height - Seated (Max) [Max] [z]	1.13 mm	1.13 - 2.81 mm
Height - Seated (Max) [Max] [z]	0.044 "	0.044 - 0.111 in
Lumens/Watt @ Current - Test	119 lm/W	74 - 174 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.45 mm	3.45 mm
Size / Dimension [x]	0.136 in	0.136 in
Size / Dimension [y]	0.136 in	0.136 in
Size / Dimension [y]	3.45 mm	3.45 mm
Supplier Device Package	-	1414
Thermal Resistance of Package	2.2 °C/W	2.2 - 2.5 °C/W
Thermal Resistance of Package	-	0.5 °C/W
Viewing Angle	115 °	115 - 125 °
Voltage - Forward (Vf) (Typ)	2.95 V	2.79 - 2.95 V

Part

Current - Test

Color

Thermal Resistance of Package

Flux @ 85°C, Current - Test

Lumens/Watt @ Current - Test

Viewing Angle

Current - Max [Max]

Package / Case

Voltage - Forward (Vf) (Typ)

Size / Dimension [x]

Size / Dimension [y]

Size / Dimension [x]

Size / Dimension [y]

Height - Seated (Max) [Max] [z]

Mounting Type

CRI (Color Rendering Index)

CCT (K)

Supplier Device Package

Thermal Resistance of Package [custom]

Flux @ 85°C, Current - Test [Max]

Flux @ 85°C, Current - Test [Min]

Flux @ 25°C, Current - Test

Flux @ 85°C, Current - Test

Cree LED

XPLAWT-00-0000-000LV20E4

1.05 A

Neutral, White

2.5 °C/W

410 lm

132 lm/W

125 °

3 A

3535 Metric

1414

2.95 V

3.45 mm

0.136 in

3.45 mm

2.81 mm

0.111 in

Surface Mount

Cree LED

XPLAWT-02-0000-000LV20E6

1.05 A

Warm, White

2.5 °C/W

410 lm

132 lm/W

125 °

3 A

3535 Metric

1414

2.95 V

3.45 mm

0.136 in

3.45 mm

2.81 mm

0.111 in

Surface Mount

3500 K

Cree LED

XPLAWT-00-0000-000BV50Z5

1.05 A

Neutral, White

2.2 °C/W

470 lm

160 lm/W

125 °

3 A

3535 Metric

1414

2.79 V

3.45 mm

0.136 in

3.45 mm

2.81 mm

0.111 in

Surface Mount

4000 K

1414

Cree LED

XPLAWT-00-0000-000BW20F5

1.05 A

Neutral, White

174 lm/W

125 °

3 A

3535 Metric

1414

2.79 V

3.45 mm

0.136 in

3.45 mm

2.81 mm

0.111 in

Surface Mount

1414

0.5 °C/W

Cree LED

XPLAWT-02-0000-0000V3050

1.05 A

Cool, White

2.5 °C/W

430 lm

139 lm/W

125 °

3 A

3535 Metric

1414

2.95 V

3.45 mm

0.136 in

3.45 mm

2.81 mm

0.111 in

Surface Mount

440 lm

420 lm

Cree LED

XPLAWT-H0-0000-000UU30E7

1.05 A

Warm, White

330 lm

113 lm/W

115 °

3 A

3535 Metric

1414

2.79 V

3.45 mm

0.136 in

3.45 mm

1.13 mm

0.044 "

Surface Mount

1414

0.5 °C/W

Cree LED

XPLAWT-H0-0000-000UU20F8

1.05 A

Warm, White

310 lm

106 lm/W

115 °

3 A

3535 Metric

1414

2.79 V

3.45 mm

0.136 in

3.45 mm

1.13 mm

0.044 "

Surface Mount

2850 K

1414

0.5 °C/W

320 lm

300 lm

Cree LED

XPLAWT-00-0000-0000V6051

1.05 A

Cool, White

2.2 °C/W

490 lm

158 lm/W

125 °

3 A

3535 Metric

1414

2.95 V

3.45 mm

0.136 in

3.45 mm

2.81 mm

0.111 in

Surface Mount

Cree LED

XPLAWT-00-0000-000LV50Z5

1.05 A

Neutral, White

470 lm

160 lm/W

125 °

3 A

3535 Metric

1414

2.79 V

3.45 mm

0.136 in

3.45 mm

2.81 mm

0.111 in

Surface Mount

4000 K

1414

0.5 °C/W

Cree LED

XPLAWT-00-0000-000UT60E7

1.05 A

Warm, White

2.5 °C/W

290 lm

94 lm/W

125 °

3 A

3535 Metric

1414

2.95 V

3.45 mm

0.136 in

3.45 mm

2.81 mm

0.111 in

Surface Mount

300 lm

280 lm

Part	Current - Test	Color	Thermal Resistance of Package	Flux @ 85°C, Current - Test	Lumens/Watt @ Current - Test	Viewing Angle	Current - Max [Max]	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	CRI (Color Rendering Index)	CCT (K)	Supplier Device Package	Thermal Resistance of Package [custom]	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]
Cree LED XPLAWT-00-0000-000LV20E4	1.05 A	Neutral, White	2.5 °C/W	410 lm	132 lm/W	125 °	3 A	3535 Metric	1414	2.95 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount
Cree LED XPLAWT-02-0000-000LV20E6	1.05 A	Warm, White	2.5 °C/W	410 lm	132 lm/W	125 °	3 A	3535 Metric	1414	2.95 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount	80	3500 K
Cree LED XPLAWT-00-0000-000BV50Z5	1.05 A	Neutral, White	2.2 °C/W	470 lm	160 lm/W	125 °	3 A	3535 Metric	1414	2.79 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount	70	4000 K	1414
Cree LED XPLAWT-00-0000-000BW20F5	1.05 A	Neutral, White			174 lm/W	125 °	3 A	3535 Metric	1414	2.79 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount	70		1414	0.5 °C/W
Cree LED XPLAWT-02-0000-0000V3050	1.05 A	Cool, White	2.5 °C/W	430 lm	139 lm/W	125 °	3 A	3535 Metric	1414	2.95 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount					440 lm	420 lm
Cree LED XPLAWT-H0-0000-000UU30E7	1.05 A	Warm, White		330 lm	113 lm/W	115 °	3 A	3535 Metric	1414	2.79 V	3.45 mm	0.136 in	0.136 in	3.45 mm	1.13 mm	0.044 "	Surface Mount	90		1414	0.5 °C/W
Cree LED XPLAWT-H0-0000-000UU20F8	1.05 A	Warm, White		310 lm	106 lm/W	115 °	3 A	3535 Metric	1414	2.79 V	3.45 mm	0.136 in	0.136 in	3.45 mm	1.13 mm	0.044 "	Surface Mount	90	2850 K	1414	0.5 °C/W	320 lm	300 lm
Cree LED XPLAWT-00-0000-0000V6051	1.05 A	Cool, White	2.2 °C/W	490 lm	158 lm/W	125 °	3 A	3535 Metric	1414	2.95 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount
Cree LED XPLAWT-00-0000-000LV50Z5	1.05 A	Neutral, White		470 lm	160 lm/W	125 °	3 A	3535 Metric	1414	2.79 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount		4000 K	1414	0.5 °C/W
Cree LED XPLAWT-00-0000-000UT60E7	1.05 A	Warm, White	2.5 °C/W	290 lm	94 lm/W	125 °	3 A	3535 Metric	1414	2.95 V	3.45 mm	0.136 in	0.136 in	3.45 mm	2.81 mm	0.111 in	Surface Mount	90				300 lm	280 lm
